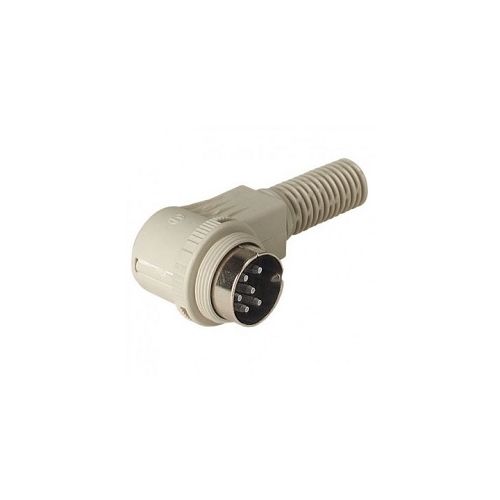

MAWI 6100 | 932910117 | 6 Pin DIN Plug
6 Pin DIN Right Angled Cable Plug
| Complete Electronics Part No. | 932910117 |
|---|---|
| Manufacturers Part No. | 932 910-117 |
| Type: | DIN Plug |
| Number of poles | 6 |
| Termination: | Solder |
| Mounting: | Cable Mount with Locking Ring |
| Socket / PIN | PIN |
| Pole Arrangement DIN | DIN 45322 |
| Cable Entry: | Right Angled |
| Rated Voltage: | 34V |
| Rated Current: | 4A |
| IP Rating: | IP30 |
Description
MAWI 6100
Male, 6 pole angled plug with locking screw
- Solder joint
- Cable diameter: 6.5 mm
- Rated voltage: AC/DC 34 V
- Rated current: 4 A
