MPI002/TERM/GN | MPI002TERMGN | SP Switch

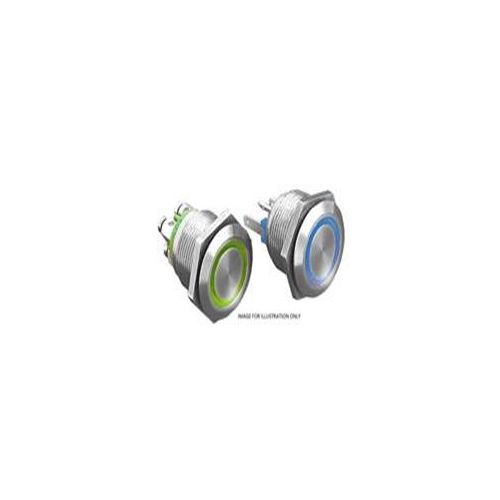

Stainless Steel Illuminated Vandal Resistant Switch S.P Push To Make Tactile Momentary Action Max Rating : 5A/250Vac, 2A/28Vdc
| Complete Electronics Part No. | MPI002TERMGN |
|---|---|
| Manufacturers Part No. | MPI002/TERM/GN |
| Switch Action: | SP Push To Make, Tactile, Momentary |
| Max Rating | 5A / 250Vac - 2A / 28Vdc |
| Termination: | Screw |
| Illumination | Green |
Description
MPI002TERMGN
Stainless Steel Illuminated Vandal Resistant Switch
- S.P Push To Make Tactile Momentary Action
- Max Rating : 5A/250Vac, 2A/28Vdc
- Mounting: Front Panel
- Termination: Screw
- Thread Size 18.97mmx 2TPI
- Operating Temp: -30C to +70C
- Switch Body and Button: Stainless Steel
- Moulding: UL94V-0 Rated Polyamide Nylon
- IP Rating: IP
Note:-No resistor fitted, an appropriate series resistor must be fitted
Formula to calculate series resistor value is R= Vs - Vf ÷ i
Where
Vs = supply voltage
Vf = LED forward voltage drop in Volts
i = LED forward current in Amps
Any odd value result round up to the next highest common value
