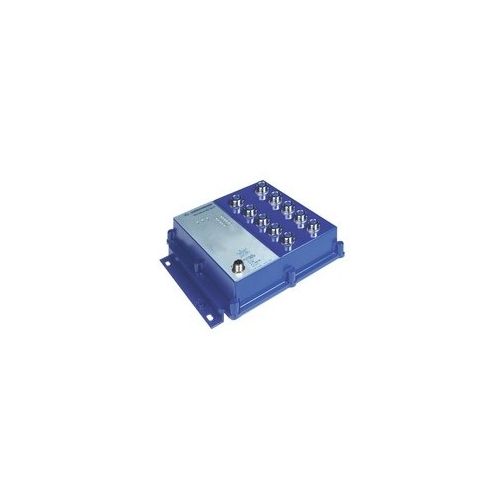

OCTOPUS OS20-001000T5T5TAFUHB | 942025001 | Industrial Ethernet

Unmanaged switch 10 Ports, M12 D coding, 4 Pole, 10/100 Base  ***Discontinued***

More Information
Complete Electronics Part No. 942025001
Manufacturers Part No. 942 025-001
Ethernet Product Type: Unmanaged Switch
Total 10/100 Base (M12 D Coding): 10
Total Ethernet Ports: 10
Operating Voltage: DC 24V/48V
Mounting: Wall
IP Rating: IP54
Description

OCTOPUS OS20-001000T5T5TAFUHB

Unmanaged switch in accordance with IEEE 802.3,

***Product Discontinued***

Suggested Alternative: 942150001

  • Store-and-forward-switching,
  • Fast-Ethernet (10/100 Mbit/s) ports.
  • OCTOPUS OS20-001000T5T5TAFUHB
  • 10 x 10/100 BASE-TX, M12 D coding, 4-pole, TP cable auto-crossing, auto-negotiation, auto-polarity
  • Accessories to order separately: 7/8″ 5-pole,female connector (942 086-005); M12 conector, “D”-coded (934 445-001); 2 m cordset with M12-connector, “D”-coded (934 578-001); 5 m cordset with M12-connectors, “D”-coded (934 578-002); 10 m cordset with M12-connectors, “D”-coded (934 578-003); Bulkhead M12 “D”-coded to RJ45 (934 498-001), OCTOPUS dust cover set (25 pieces) (942 057-001)

     *** For configuration options use the link below ***

                                 Link to Octopus configurator
