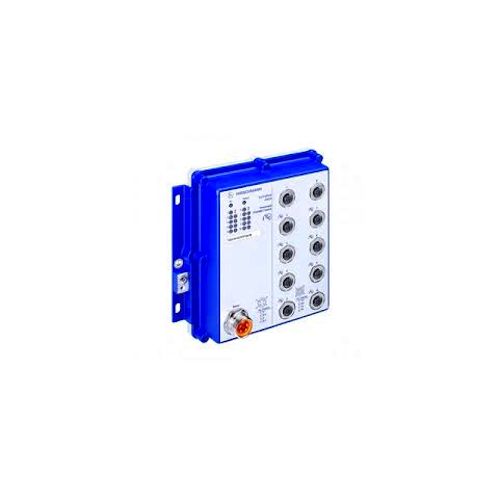

OS24-081000T5T5TNEUHB | 942025004 | Industrial Ethernet
Unmanaged switch 10 Ports of which 8 are PoE, 10/100 Base ***Discontinued***
| Complete Electronics Part No. | 942025004 |
|---|---|
| Manufacturers Part No. | 942 025-004 |
| Ethernet Product Type: | Unmanaged Switch |
| Total 10/100 Base (M12 D Coding): | 10 |
| Number Of PoE Ports: | 8 |
| Total Ethernet Ports: | 10 |
| Operating Voltage: | DC 72V - 110V |
| Mounting: | Wall |
| IP Rating: | IP54 |
Description
OS24-081000T5T5TNEUHB
Unmanaged switch in accordance with IEEE 802.3,
***Product Discontinued***
No Alternative Available
- Store-and-forward-switching,
- Fast-Ethernet (10/100 Mbit/s) ports,
- Power sourcing equipment in accordance with IEEE 802.3at (inline power) total PoE power max. 62W
- 8 x 10/100 Base-TX PoE (phantom power) and 2 x 10/100 Base-TX, M12 D-coded, 4-polig, TP-cable, autocrossing, autonegotiation, autopolarity
- Accessories to order separately: 7/8″ 5-pole,female connector (942 086-005); M12 conector, “D”-coded (934 445-001); 2 m cordset with M12-connector, “D”-coded (934 578-001); 5 m cordset with M12-connectors, “D”-coded (934 578-002); 10 m cordset with M12-connectors, “D”-coded (934 578-003); Bulkhead M12 “D”-coded to RJ45 (934 498-001), OCTOPUS dust cover set (25 pieces) (942 057-001)
