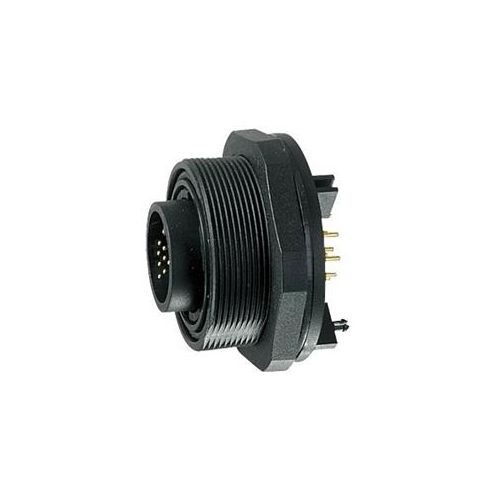

PX0707/P/09 | PX0707P09 | Connector
Standard Series Buccaneer 9 Pole Male Rear Panel Mount Connector
| Complete Electronics Part No. | PX0707P09 |
|---|---|
| Manufacturers Part No. | PX0707/P/09 |
| Type: | Panel Mount Connector |
| Mounting: | Rear Mounting |
| Number of poles | 9 |
| Termination: | PCB Mount |
| Male/Female: | Male |
| Rated Voltage: | 150V |
| Rated Current: | 5A |
| IP Rating: | IP68 |
Description
PX0707P09
Standard Series Buccaneer 9 Pole Male Rear Panel Mount Connector
- Mates with Flex Cable Connector
- Voltage: 150Vac/dc
- Current: 5Amps
- Application: Panel Mount (Rear)
- Contacts: Pins
- Termination: PCB
- Temperature: -20 °C/+70 °C
- IP Rating: Water and Dust to IP68
- Approvals: UL, CSA & VDE
