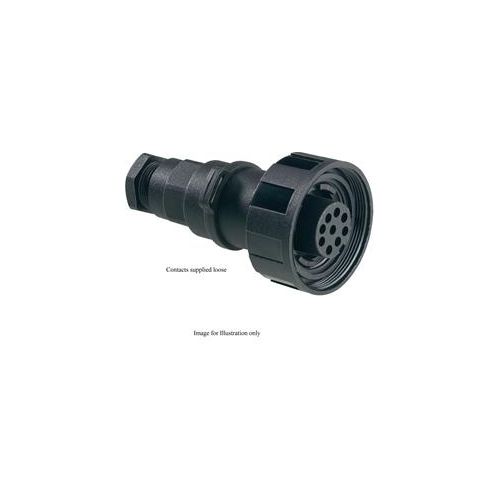

PX0728/S/05 | PX0728S05 | Connector
Standard Series Buccaneer 9 Pole Female Flex Cable Connector with 5-7mm cable gland
| Complete Electronics Part No. | PX0728S05 |
|---|---|
| Manufacturers Part No. | PX0728/S/05 |
| Type: | Cable Socket |
| Mounting: | Cable |
| Number of poles | 9 |
| Termination: | Crimp |
| Male/Female: | Female |
| Rated Voltage: | 150V |
| Rated Current: | 5A |
| IP Rating: | IP68 |
Description
PX0728S05
Standard Series Buccaneer 9 Pole Female Flex Cable Connector
- With 5-7mm cable gland
- Mates with In-Line Flex or Panel Mount Versions
- Voltage: 150Vac/dc
- Current: 5Amps
- Application: Cable Mount
- Contacts: Sockets
- Termination: Crimp
- Temperature: -20 °C/+70 °C
- IP Rating: Water and Dust to IP68
- Approvals: UL, CSA & VDE
