PX0731/P/RD1 | PX0731PRD1 | Connector

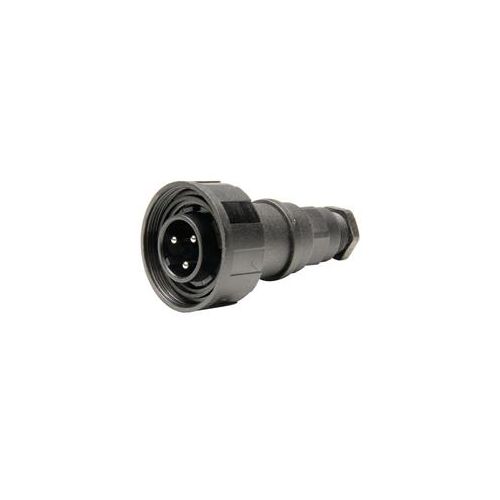

Standard Series Buccaneer 3 Pole Male Flex Cable Connector with red insert & gland nut
| Complete Electronics Part No. | PX0731PRD1 |
|---|---|
| Manufacturers Part No. | PX0731/P/RD1 |
| Type: | Cable Plug |
| Mounting: | Cable |
| Number of poles | 3 |
| Termination: | Screw |
| Male/Female: | Male |
| Rated Voltage: | 277V |
| Rated Current: | 12A |
| IP Rating: | IP68 |
Description
PX0731PRD1
Standard Series Buccaneer 3 Pole Male
- Flex Cable Connector
- With red insert & gland nut
- Mates with In-Line Flex or Panel Mount Versions
- Voltage: 277Vac/dc
- Current: 12Amps
- Application: Cable Mount
- Contacts: Pin
- Termination: Screw
- Temperature: -20 °C/+70
