PX0732/S/05 | PX0732S05 | Connector

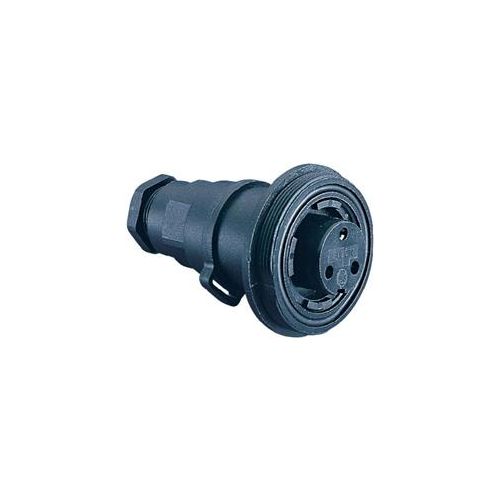

Standard Series Buccaneer 3 Pole Female Flex In-Line Cable Connector with 5-7mm cable gland
| Complete Electronics Part No. | PX0732S05 |
|---|---|
| Manufacturers Part No. | PX0732/S/05 |
| Type: | Cable Plug |
| Mounting: | Cable |
| Number of poles | 3 |
| Termination: | Screw |
| Male/Female: | Female |
| Rated Voltage: | 277V |
| Rated Current: | 12A |
| IP Rating: | IP68 |
Description
PX0732S05
Standard Series Buccaneer 3 Pole Female Flex In-Line Cable Connector with 5-7mm cable gland
- Mates with Flex Cable Connector
- Voltage: 277Vac/dc
- Current: 12Amps
- Application: Cable Mount
- Contacts: Sockets
- Termination: Screw
- Temperature: -20 °C/+70 °C
- IP Rating: Water and Dust to IP68
- Approvals: UL, CSA & VDE
