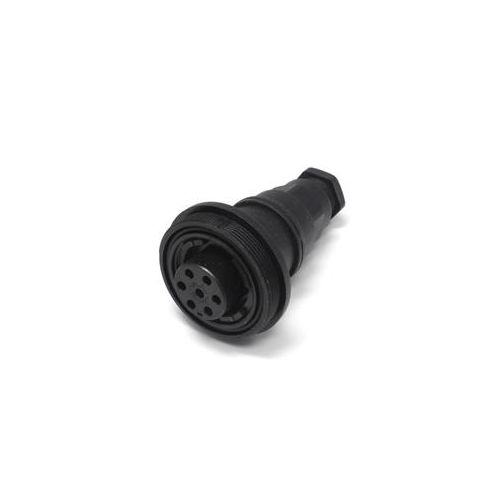

PX0746/S/07/WH1 | PX0746S07WH1 | Connector
Standard Series Buccaneer 7 Pole Female Flex In-Line Cable Connector with 7-9mm cable gland, white insert & cable gland
| Complete Electronics Part No. | PX0746S07WH1 |
|---|---|
| Manufacturers Part No. | PX0746/S/07/WH1 |
| Type: | Cable Socket |
| Mounting: | Cable |
| Number of poles | 7 |
| Termination: | Screw |
| Male/Female: | Female |
| Rated Voltage: | 277V |
| Rated Current: | 5A |
| IP Rating: | IP68 |
Description
PX0746S07WH1
7 Pole Female Flex In-Line Cable Connector
- Standard Series Buccaneer
- With 7-9mm cable gland
- White insert & cable gland
- Mates with Flex Cable Connector
- Voltage: 277Vac/dc
- Current: 5Amps
- Application: Cable Mount
- Contacts: Sockets
- Termination: Screw
- Temperature: -20 °C/+70 °C
- IP Rating: Water and Dust to IP68
- Approvals: UL, CSA & VDE
