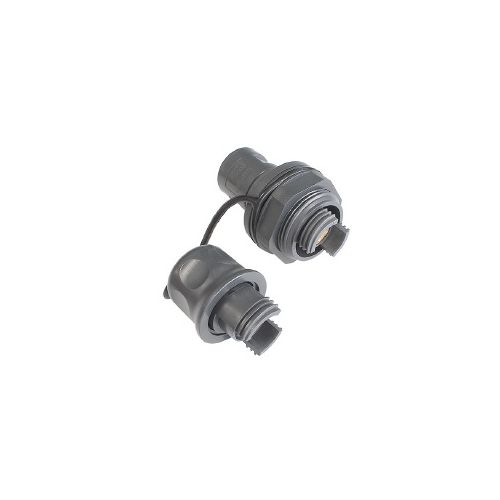

PXEB5210MM5055 | Jam Nut Bulkhead Connector | 5000 Series
Non-terminated Connector With Cable Retention for 2 patch leads, Mates with Plug Connectors, Dust Cap, Lanyard, & Ferrules (termini) included
| Complete Electronics Part No. | PXEB5210MM5055 |
|---|---|
| Manufacturers Part No. | PXEB5210MM5055 |
| Type: | Panel Mount Connector |
| Mounting: | Bulkhead Mounting |
| Number of poles | 2 Channels |
| Cable Diameter | 5 - 5.5mm |
Description
PXEB5210MM5055
2 Channel Jam Nut Bulkhead Connector
With cable retention
Non-terminated Connector for2-Channel cable
Designed to MIL-DTL-83526D
Secure, proven locking system
Cable Acceptance: 5.0mm to 5.5mm
Compatible with multimode OM1 & OM3 cables
Dust Cap, Lanyard, & Ferrules (termini) included
Mates with Plug Connectors (hermaphroditic)
Operating Temperature Range:-50⁰C to +80⁰C
Maximum Panel Thickness 4.7mm
UL94-V0 rated
UV stable
Halogen Free
Suitable for long term outdoor use
Ingress protection: IP68
Part Number: PXEB5210MM5055
