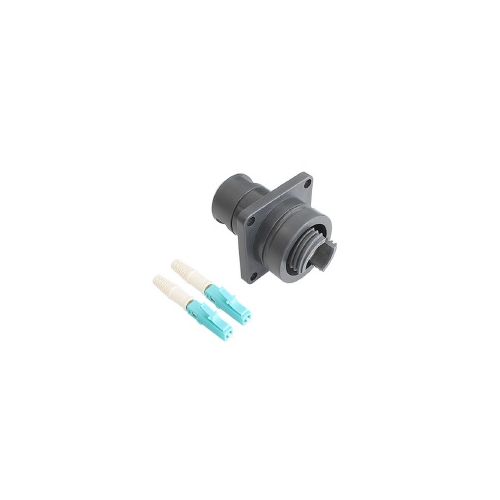

PXEB5222B005 | Flange Mount to LC Cable assy | 5000 Series
Terminated Flange Mount Bulkhead Connector (FMBH), with 2 x LC terminated Cables, Cable Length 5 metres, OM1 multimode fiber
| Complete Electronics Part No. | PXEB5222B005 |
|---|---|
| Manufacturers Part No. | PXEB5222B005 |
| Type: | Flange Mount to LC Connector |
| Mounting: | Bulkhead Mounting |
| Number of poles | 2 Channels |
| Cable Length: | 5 Metres |
Description
PXEB5222B005
FMBH Connector to 2 x LC Connectors
Cable Length: 5 metres
Designed to MIL-DTL-83526D
Secure, proven locking system
Multimode OM1 cables
Dust Cap & lanyard included
Mates with Plug Connectors (hermaphroditic)
Operating Temperature Range:-50⁰C to +80⁰C
UL94-V0 rated
UV stable
Halogen Free
Suitable for long term outdoor use
Ingress protection: IP68
Part Number: PXEB5222B005
