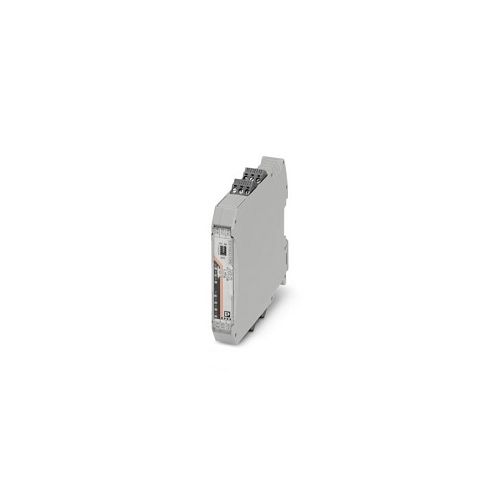

RAD-DOR4-IFS | 2901536 | I/O Extension module
Radioline - I/O extension module, 4 digital relay outputs (5 A, 250 V AC/DC)
| Complete Electronics Part No. | 2901536 |
|---|---|
| Manufacturers Part No. | 2901536 |
| Ethernet Product Type: | I/O Extension Module |
Description
I/O Extension module - RAD-DAIO6-IFS
- Supply Voltage range: 19.2 V DC ... 30.5 V DC (DIN Rail Connector)
- Max Current Consumption: ≤ 55 mA (At 24 V DC, at 25°C)
- 4 x Relay Output (Changeover Contact)
- Maximum Switching voltage: 250 V AC/DC
- Min switching current: ≥ 10 mA
- Max Switching Current: 5A (per channel)
- Connection Method: Screw Connection
- LED Signaling
- Width: 17.5mm
- Height: 113mm
- Depth: 114.5 mm
- Housing material: PA 6.6-FR
- Colour: Green
- Ingress protection: IP20
- Operating Temperature: -40°C ... 70°C (>55°C derating)
- Weight per Piece (excluding packing): 179.4 g
- Part Number 2901536
- Customs tariff number: 85177900
- Country of origin: DE
