RAD-ISM-2400-ANT-OMNI-2-1-RSMA | 2701362 | Antenna
Omnidirectional antenna, 2.4 GHz, gain: 2 dBi, polarization: linear, opening angle: h/v 360°/75°, degree of protection: IP65, connection: RSMA (male)
| Complete Electronics Part No. | 2701362 |
|---|---|
| Manufacturers Part No. | 2701362 |
| Ethernet Product Type: | Antenna |
Description
Antenna - RAD-ISM-2400-ANT-OMNI-2-1-RSMA

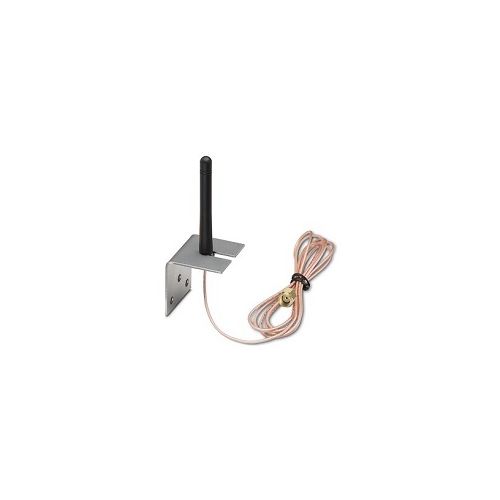

- Omnidirectional antenna incl. mounting bracket, cable (1.5m) and mast clip
- Frequency 2.4 GHz
- Gain 2 dBi
- Polarization: linear
- Opening angle: h/v 360°/75°
- Ingress Protection: IP65
- Connection method: RSMA (male)
- Impedance: 50 Ω
- For freely mobile applications
- For multipoint or mesh connections
- Maximun Capacity: 15.00 W
- Antenna housing: Polyurethane
- Antenna Foot: Polycarbonate PC
- Bracket: V2A
- Height: 82.5 mm
- Width: 7.8 mm
- Operating Temperature: -20°C ... 65°C
- Wall mount
- Weight per Piece (excluding packing): 70 g
- Part Number 2701362
- Customs tariff number: 85177100
- Country of origin: TW
