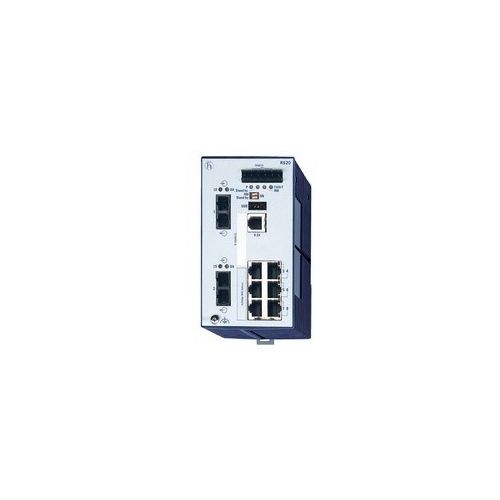

RS20-0800M2M2SDHEHH0 | 943434015 | Industrial Ethernet
8 port Fast Ethernet-switch, managed, 6 x standard 10/100 BASE TX, RJ45, 2 x Uplink: 100BASE-FX, MM-SC
| Complete Electronics Part No. | 943434015 |
|---|---|
| Manufacturers Part No. | 943-434-015 |
| Ethernet Product Type: | Managed Switch |
| Total 10/100 (RJ45) Ports: | 6 |
| Total 100/1000 (FX) Ports: | 2 |
| Total Ethernet Ports: | 8 |
| FX (Optical) Connector Type: | SC |
| FX (Optical) Cable Type: | Multi Mode (MM) |
| Operating Voltage: | 12/24/48 V DC & 24V AC |
| Mounting: | DIN Rail |
| IP Rating: | IP20 |
Description
RS20-0800M2M2SDHEHH0
RS20-0800M2M2SDHEHH0
8 port Fast Ethernet-switch, managed,
- Software Layer 2 Enhanced,
- For DIN rail
- Store-and-forward-switching,
- Fanless design.
- 8 ports in total;
- 2 x Uplink: 100BASE-FX, MM-SC;
- 6 x standard 10/100 BASE TX, RJ45
- Operating voltage 12/24/48 V DC (9,6-60) V and 24 V AC (18-30) V (redundant)
- Operating temperature 0º to +60ºC
- Dimensions (W x H x D) 74 x 131 x 111
- Mounting DIN Rail
- Protection class IP20
- Accessories to order separately:
- Rail power supply RPS 30, RPS 80 EEC or RPS 120 EEC,
- Terminal cable,
- Network management HiVision, auto-configuration adapter (ACA21-USB),
- 19" installation frame
***Product Discontinuation Notice***
Last Order Date: Dec 31st 2023
Last Delivery Date: June 30th 2024
Last Service Date: June 30th 2029
