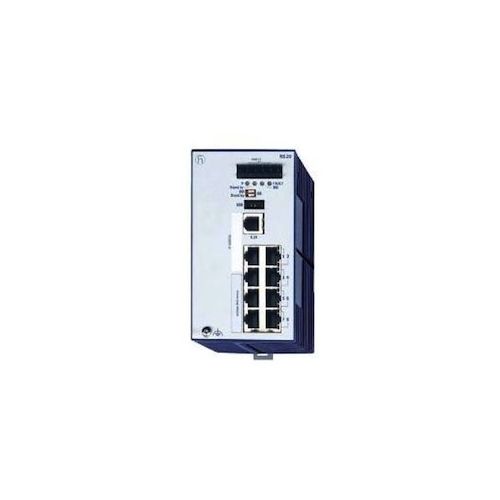

RS22-0800M2M2SPAEHFXX.X. | 943434069 | Industrial Ethernet
Managed 8 port fast Ethernet switch (4 PoE ports), 2 x uplink: 100BASE-FX, MM-SC, 6 x standard 10/100 BASE TX RJ45, Software Layer 2 Enhanced
| Complete Electronics Part No. | 943434069 |
|---|---|
| Manufacturers Part No. | 943 434-069 |
| Ethernet Product Type: | Managed Switch |
| Total 10/100 (RJ45) Ports: | 6 |
| Total 100 Base Ports: | 2 |
| Number Of PoE Ports: | 4 |
| Total Ethernet Ports: | 8 |
| FX (Optical) Connector Type: | SC |
| FX (Optical) Cable Type: | Multi Mode (MM) |
| Mounting: | DIN Rail |
| IP Rating: | IP20 |
Description
RS22-0800M2M2SPAEHF08.0.
8 port fast Ethernet switch (4 PoE ports)
- Managed
- Software Layer 2 Enhanced
- For DIN rail
- Store-and-forward-switching
- Fanless design
- Metal housing
- 8 ports in total
- 1. uplink: 100BASE-FX, MM-SC
- 2. uplink: 100BASE-FX, MM-SC
- 6 x standard 10/100 BASE TX RJ45
- 4 PoE Ports
- Operating voltage 48 V DC
- Current consumption at 48 V DC 160 mA
- Operating temperature 0 ºC ... 60 ºC
- Dimensions (W x H x D) 90 mm x 137 mm x 115 mm
- Weight 820 g
- Protection class IP20
***Product Discontinuation Notice***
Last Order Date: Dec 31st 2023
Last Delivery Date: June 30th 2024
Last Service Date: June 30th 2029
