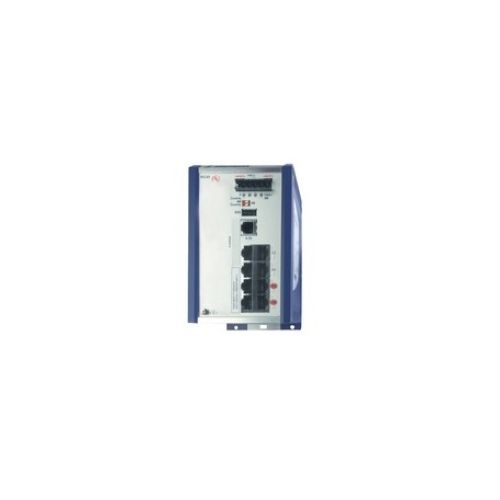

RS22-0800M4M4SPAEHF07.0 | Industrial Ethernet
Managed 8 port fast Ethernet switch (4 PoE ports), 2 x uplink: 100BASE-FX, MM-ST, 6 x standard 10/100 BASE TX RJ45 with 4 ports being PoE
| Complete Electronics Part No. | RS220800M4M4SPAEHF070 |
|---|---|
| Manufacturers Part No. | RS22-0800M4M4SPAEHF07.0 |
| Ethernet Product Type: | Managed Switch |
| Total 10/100 (RJ45) Ports: | 6 |
| Total 100 Base Ports: | 2 |
| Number Of PoE Ports: | 4 |
| Total Ethernet Ports: | 8 |
| FX (Optical) Connector Type: | SC |
| FX (Optical) Cable Type: | Multi Mode (MM) |
| Mounting: | DIN Rail |
| IP Rating: | IP20 |
Description
RS22-0800M4M4SPAEHF07.0
8 port managed fast Ethernet switch (4 PoE ports)
Software Layer 2 Enhanced
Store-and-forward-switching
8 ports in total
1. uplink: 100BASE-FX, MM-ST
2. uplink: 100BASE-FX, MM-ST
6 x standard 10/100 BASE TX RJ45 with 4 ports being PoE
Operating voltage 48 V DC
Current consumption at 48 V DC 160 mA
Operating temperature 0 ºC ... 60 ºC
Fanless design
Metal housing
For DIN rail
Dimensions (W x H x D) 90 mm x 137 mm x 115 mm
Weight 820 g
Protection class IP20
