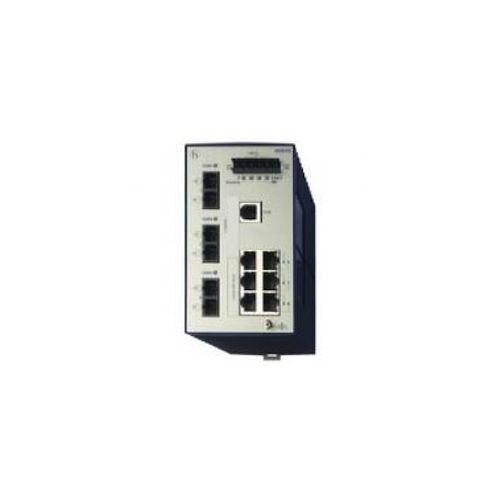

RSB20-0900ZZZ6SAABHH | 942014004 | Industrial Ethernet
9 Port Managed Industrial switch for DIN Rail, 6 x standard 10/100 BASE TX, RJ45, 1. uplink 2 x FE SFP-Slot, 2. uplink 1 x FE SFP-Slot
| Complete Electronics Part No. | 942014004 |
|---|---|
| Manufacturers Part No. | 942 014-004 |
| Ethernet Product Type: | Managed Switch |
| Total 10/100 (RJ45) Ports: | 6 |
| Total 100 Base Ports: | 3 |
| Total Ethernet Ports: | 9 |
| FX (Optical) Connector Type: | FE - SFP |
| Operating Voltage: | DC 24 V |
| Mounting: | DIN Rail |
| IP Rating: | IP20 |
Description
RSB20-0900ZZZ6SAABHH
Industrial switch for DIN Rail
- Ethernet/Fast Ethernet-Switch acc. to IEEE 802.3
- Compact
- Managed
- Industrial switch for DIN Rail
- Store-and-Forward-Switching
- Fanless design
- 9 ports in total
- EtherNet/IP and PROFINET compatible
- 1.uplink 2 x FE SFP-Slot;
- 2.uplink 1 x FE SFP-Slot
- 6 x standard 10/100 BASE TX, RJ45
- Operating voltage 24 V DC (18-32 V)
- Current consumption at 24 V DC 265 mA
- Operating temperature 0 ºC ... 60 ºC
- Dimensions (W x H x D) 71 mm x 131 mm x 111 mm
- Mounting DIN Rail
- Weight 400 g
- Protection class IP20
***Product Discontinuation Notice***
Last Order Date: Dec 31st 2023
Last Delivery Date: June 30th 2024
Last Service Date: June 30th 2029
