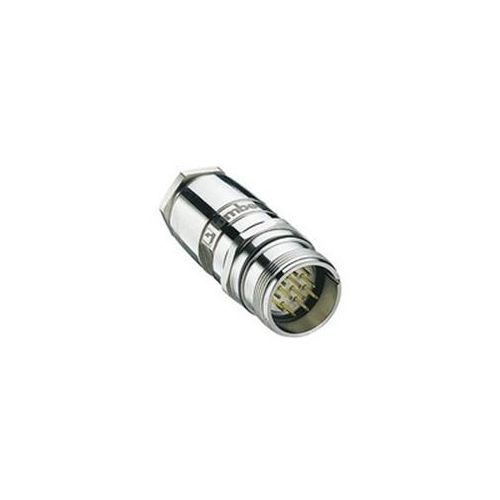

RSC-F-120/13.5 | RSCF120135 | 7188 | Connector
Field Attachable Connector, M23 male connector with threaded joint, external thread, solder connections, screw joint for cable, PG 13.5, 12 poles ***Discontinued***
| Complete Electronics Part No. | RSCF12013.5 |
|---|---|
| Manufacturers Part No. | RSC-F-120/13.5 |
| Type: | Field Attachable Connector |
| Termination: | Solder |
| Mounting: | Cable |
| Male/Female: | Male |
| Cable Entry: | Straight |
| Number of poles | 12 |
| Rated Voltage: | 250V |
| Rated Current: | 7.5A |
| IP Rating: | IP67 |
Description
RSC-F-120/13.5
Field Attachable Connector
- M23 male connector with threaded joint
- external thread
- assembling with solder connections
- screw joint for cable PG 13,5
- 12 poles
- Current in 7.5 Amps
- Rated voltage 250v
- Housing CuZn, nickel-plated
- IP67 Rated
- Number of contacts 12
***Product Discontinued***
No Alternative Available
