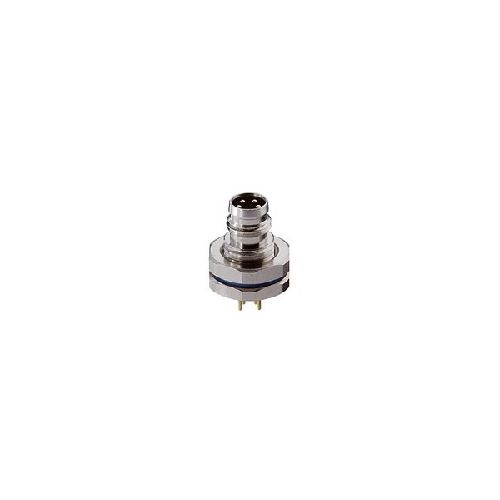

RSMHL 3/S 5,5 | 46316 | Connector
Receptacle connector, M8 male connector for rear panel mounting, 3 poles, printed contacts, chassis side thread M10 x 1 (panel nut included)
| Complete Electronics Part No. | 46316 |
|---|---|
| Manufacturers Part No. | 46316 |
| Type: | Recptacle Connector |
| Termination: | Solder |
| Mounting: | Rear Mounting |
| PCB Connector Mounting | PCB Straight |
| Cordset Gender M8: | M8 Male |
| Number of poles | 3 |
| Rated Voltage: | 60V (nominal) |
| Rated Current: | 4A at 40°C |
| IP Rating: | IP67 |
Description
RSMHL 3/S 5,5
Receptacle Connector
- For rear panel mounting
- M8 male connector
- Printed contacts
- 3 Poles
- Chassis side thread M10 x 1 (panel nut included)
