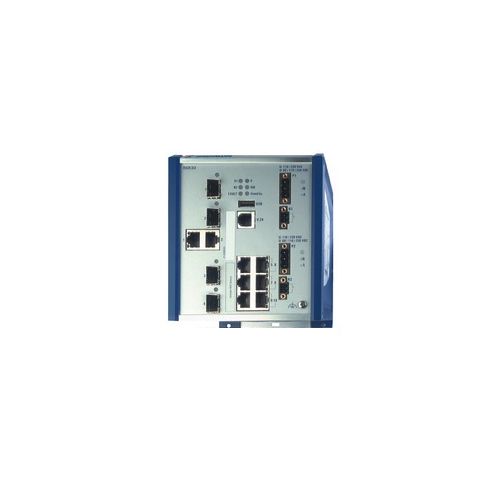

RSR20-0800M2M2T1SCCHPHH07.0. | 943953015 | Industrial Ethernet
8 port Fast Ethernet Switch
***No Longer Available***
| Complete Electronics Part No. | 943953015 |
|---|---|
| Manufacturers Part No. | 943 953-015 |
| Ethernet Product Type: | Managed Switch |
| Total 10/100 (RJ45) Ports: | 6 |
| Total 100/1000 (FX) Ports: | 2 |
| Total Ethernet Ports: | 8 |
| FX (Optical) Connector Type: | SC |
| FX (Optical) Cable Type: | Multi Mode (MM) |
| Operating Voltage: | DC 24/36/48 V |
| Mounting: | DIN Rail |
| IP Rating: | IP30 |
Description
RSR20-0800M2M2T1SCCHPHH07.0.
8 port Fast Ethernet Switch
Belden have discontinued the Hirschmann RSR series (RSR20/30).
Suggested Alternative:- RSP20-xx, RSPS30-xx
- Managed
- Software Layer 2 Professional
- For DIN rail
- Store-and-forward-switching
- Fanless design
- 8 ports in total, 8 x FE; 1. uplink: 100BASE-FX, MM-SC; 2. uplink: 100BASE-FX, MM-SC; 6 x 10/100BASE TX, RJ45
*** See datasheet for configuration options or use the link below ***
