RSTS 4-RKWTS 4-288/2 M | RSTS4RKWTS42882M | 934705005 | Cordset

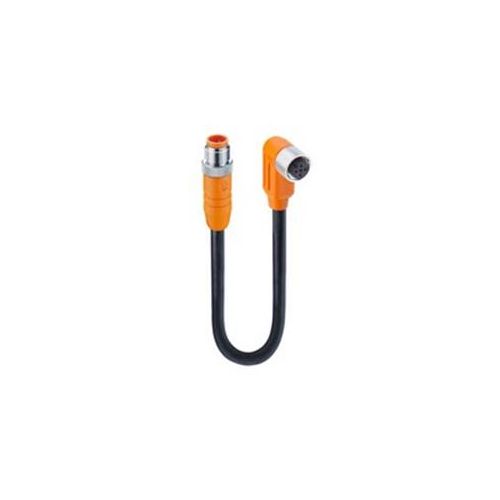

Cordset, double ended, M12 male connector, straight, to M12 female connector, right angled, 4 poles, PUR jacket, halogen free, screened, black, 2 metres.
| Complete Electronics Part No. | RSTS4RKWTS42882M |
|---|---|
| Manufacturers Part No. | RSTS 4-RKWTS 4-288/2 M |
| Type: | Cordset (Shielded) |
| Cordset Type: | Double Ended |
| Cordset Gender M12: | M12 Male - M12 Female |
| Cable Entry: | Straight - Right Angled |
| Number of poles | 4 |
| Rated Voltage: | 250V |
| Rated Current: | 4A |
| Cable Length: | 2 Metres |
| Cable Jacket: | PUR |
| IP Rating: | IP67 |
Description
RSTS 4-RKWTS 4-288/2 M
Cordset, double ended for sensors and actuators
- M12 male connector with self-locking threaded joint
- straight
- To
- M12 female connector, right angled
- with self-locking threaded joint
- 360° shielding connected to knurled screw resp. knurled nut
- colour coding of the conductor acc. to Euro-standard
- 4 poles
- PUR jacket
- halogen free
- screened
- black (288)
- 2 metres
