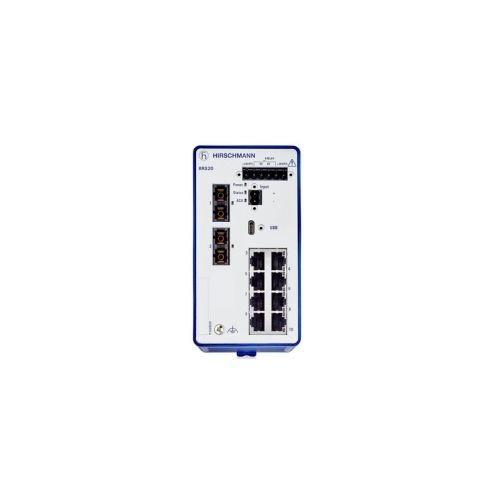

942170039 | BRS20-8TX/2FX-SM-EEC-HL | BOBCAT Ethernet Switch
Managed 10 port Fast-Ethernet-Switch, uplink:1 x 100BASE-FX, SM-SC, 8x standard 10/100 BASE TX, RJ45
| Complete Electronics Part No. | 942170039 |
|---|---|
| Manufacturers Part No. | 942170039 |
| Ethernet Product Type: | BRS20 |
| Total 10/100 (RJ45) Ports: | 8 |
| Total 100 Base Ports: | 2 |
| Total Ethernet Ports: | 10 |
| FX (Optical) Connector Type: | SC |
| FX (Optical) Cable Type: | Single Mode (SM) |
| Operating Voltage: | DC 24V/48V |
| Mounting: | DIN Rail |
| IP Rating: | IP30 |
Description
BRS20-1000S2S2-TFCX99HHSES
10 port managed Fast-Ethernet-Switch
uplink:1 x 100BASE-FX, SM-SC
uplink:1 x 100BASE-FX, SM-SC
8x standard 10/100 BASE TX, RJ45
Operating voltage 2 x 24 to 48 VDC and 24V AC
Operating temperature -40 ºC ... 70 ºC
Mounting: DIN rail
Fanless design
Weight: 570g
Protection Class: IP30
Housing Material: Plastic
Accessories available to order:-
AutoConfiguration Adapter ACA22-USB-C (EEC) 942-239-001
6-pin terminal block with screw lock (50 pieces) 943 845-013
2-pin terminal block with screwlock (50 pieces) 943 845-009
Industrial HiVision Network Management Software 943 156-xxx
