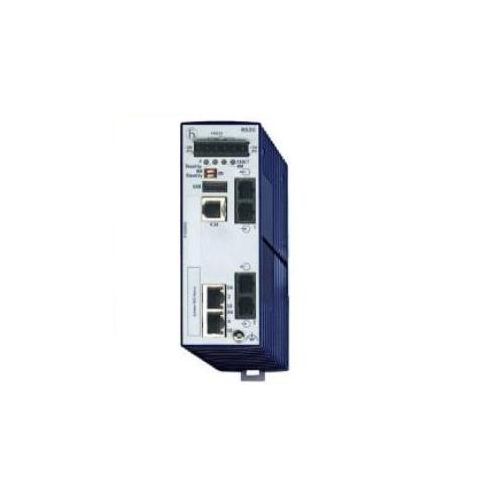

943434067 I Managed Ethernet Switch
Managed 9 port Fast-Ethernet-Switch, 6 x standard 10/100 BASE TX, RJ45, Uplink 2 x 100BASE-FX, SM-SC, Uplink 1 x 100BASE-FX, MM-SC
| Complete Electronics Part No. | 943434067 |
|---|---|
| Manufacturers Part No. | 943434067 |
| Ethernet Product Type: | Managed Switch |
| Total 10/100 (RJ45) Ports: | 6 |
| Total 100 Base Ports: | 3 |
| Total Ethernet Ports: | 9 |
| FX (Optical) Connector Type: | SC |
| FX (Optical) Cable Type: | Multimode or Single Mode |
| Operating Voltage: | 12/24/48 V DC & 24V AC |
| Mounting: | DIN Rail |
| IP Rating: | IP20 |
Description
RS20-0900VVM2EDAEHHXX.X.
9 port Managed Fast-Ethernet-Switch
6 x standard 10/100 BASE TX, RJ45
Uplink 1: 2 x 100BASE-FX, SM-SC
Uplink 2: 1 x 100BASE-FX, MM-SC
V.24 interface 1 x RJ11 socket
Software Layer 2 Enhanced
Store-and-forward-switching
Operating Voltage 12/24/48V DC (9,6-60)V and 24V AC (18-30)V (redundant)
Power consumption max. 9.6 W
1 x USB to connect auto-configuration adapter ACA21-USB
Operating temperature -40-+70 °C
Fanless Design
For DIN rail mounting
Dimensions (WxHxD) 74 mm x 131 mm x 111 mm
Weight 600 g
Protection class IP20
Accessories:
Rail Power Supply RPS30, RPS60, RPS90 or RPS120
***Product Discontinuation Notice***
Last Order Date: Dec 31st 2023
Last Delivery Date: June 30th 2024
Last Service Date: June 30th 2029
