Various Applications
Power and Control cables for various applications
- Multi Core / Single Core
- Number of conductors: From 1 to 65
- Conductor Cross Sections from 0.5mm² to 300mm²
- Screened / Unscreened versions
- With / Without GN-YE protective conductor
- Product values are nominal values
-
8716120 | OLFLEX CHAIN TM 12G1,5 | Various ApplicationsHighly flexible Control cable, Number of Conductors: 12, Conductor Cross section: 1.5mm², Cable Outer Diameter: 14.7mm, With GN-YE protective conductor
-
8716120S | OLFLEX CHAIN TM CY 12G1,5 | Various ApplicationsHighly flexible, Screened Control cable, No. of Conductors: 12, Conductor Cross section: 1.5mm², Cable Outer Diameter: 15.4mm, With GN-YE protective conductor
-
8716180 | OLFLEX CHAIN TM 18G1,5 | Various ApplicationsHighly flexible Control cable , Number of Conductors: 18, Conductor Cross section: 1.5mm², Cable Outer Diameter: 17.2mm, With GN-YE protective conductor
-
8716180S | OLFLEX CHAIN TM CY 18G1,5 | Various ApplicationsHighly flexible, Screened Control cable, No of Conductors: 18, Conductor Cross section: 1.5mm², Cable Outer Diameter: 18.1mm, With GN-YE protective conductor
-

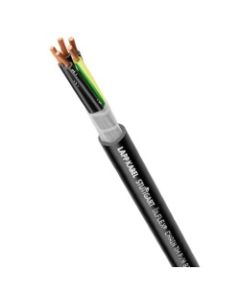

8716250 | OLFLEX CHAIN TM 25G1,5 | Various ApplicationsHighly flexible Control cable, Number of Conductors: 25, Conductor Cross section: 1.5mm², Cable Outer Diameter: 20.0mm, With GN-YE protective conductor
-
8716250S | OLFLEX CHAIN TM CY 25G1,5 | Various ApplicationsHighly flexible, Screened Control cable, No. of Conductors: 25, Conductor Cross section: 1.5mm², Cable Outer Diameter: 22.1mm, With GN-YE protective conductor
-
8718030 | OLFLEX CHAIN TM 3G1 | Various ApplicationsHighly flexible Control cable, Number of Conductors: 3, Conductor Cross section: 1.0mm², Cable Outer Diameter: 7.8mm, With GN-YE protective conductor
-

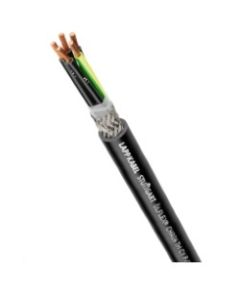

8718030S | OLFLEX CHAIN TM CY 3G1 | Various ApplicationsHighly flexible, Screened Control cable , No. of Conductors: 3, Conductor Cross section: 1.0mm², Cable Outer Diameter: 8.4mm, With GN-YE protective conductor
-
8718040 | OLFLEX CHAIN TM 4 G 1 | Various ApplicationsHighly flexible Control cable, Number of Conductors: 4, Conductor Cross section: 1.0mm², Cable Outer Diameter: 8.6mm, With GN-YE protective conductor
-
8718040S | OLFLEX CHAIN TM CY 4 G 1 | Various ApplicationsHighly flexible, Screened Control cable, No. of Conductors: 4, Conductor Cross section: 1.0mm², Cable Outer Diameter: 9.1mm, With GN-YE protective conductor
-
8718050 | OLFLEX CHAIN TM 5G1 | Various ApplicationsHighly flexible Control cable, Number of Conductors: 5, Conductor Cross section: 1.0mm², Cable Outer Diameter: 9.3mm, With GN-YE protective conductor
-
8718050S | OLFLEX CHAIN TM CY 5G1 | Various ApplicationsHighly flexible, Screened Control cable , No. of Conductors: 5, Conductor Cross section: 1.0mm², Cable Outer Diameter: 10.0mm, With GN-YE protective conductor
