Various Applications
Power and Control cables for various applications
- Multi Core / Single Core
- Number of conductors: From 1 to 65
- Conductor Cross Sections from 0.5mm² to 300mm²
- Screened / Unscreened versions
- With / Without GN-YE protective conductor
- Product values are nominal values
-
0026170 | OLFLEX CLASSIC FD 810 3G2,5 | Various ApplicationsPower and control cable, Number of Conductors: 3, Conductor Cross section: 2.5mm², Outer Cable Diameter: 9.0mm, With GN-YE protective conductor
-
0026171 | OLFLEX CLASSIC FD 810 4 G 2,5 | Various ApplicationsPower and control cable, Number of Conductors: 4, Conductor Cross section: 2.5mm², Outer Cable Diameter: 10.0mm, With GN-YE protective conductor
-

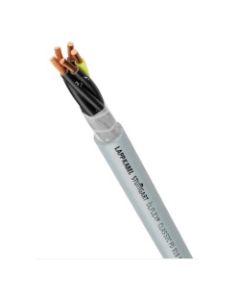

0026172 | OLFLEX CLASSIC FD 810 5G2,5 | Various ApplicationsPower and control cable, Number of Conductors: 5, Conductor Cross section: 2.5mm², Outer Cable Diameter: 11.2mm, With GN-YE protective conductor
-
0026173 | OLFLEX CLASSIC FD 810 7G2,5 | Various ApplicationsPower and control cable, Number of Conductors: 7, Conductor Cross section: 2.5mm², Outer Cable Diameter: 13.6mm, With GN-YE protective conductor
-
0026174 | OLFLEX CLASSIC FD 810 12G2,5 | Various ApplicationsPower and control cable, Number of Conductors: 12, Conductor Cross section: 2.5mm², Outer Cable Diameter: 16.0mm, With GN-YE protective conductor
-
0026175 | OLFLEX CLASSIC FD 810 14 G 2,5 | Various ApplicationsPower and control cable, Number of Conductors: 14, Conductor Cross section: 2.5mm², Outer Cable Diameter: 17.2mm, With GN-YE protective conductor
-
0026180 | OLFLEX CLASSIC FD 810 3G4 | Various ApplicationsPower and control cable, Number of Conductors: 3, Conductor Cross section: 4.0mm², Outer Cable Diameter: 10.6mm, With GN-YE protective conductor
-
0026181 | OLFLEX CLASSIC FD 810 4 G 4 | Various ApplicationsPower and control cable, Number of Conductors: 4, Conductor Cross section: 4.0mm², Outer Cable Diameter: 11.7mm, With GN-YE protective conductor
-
0026182 | OLFLEX CLASSIC FD 810 5G4 | Various ApplicationsPower and control cable, Number of Conductors: 5, Conductor Cross section: 4.0mm², Outer Cable Diameter: 13.1mm, With GN-YE protective conductor
-
0026183 | OLFLEX CLASSIC FD 810 4 G 6 | Various ApplicationsPower and control cable, Number of Conductors: 4, Conductor Cross section: 6.0mm², Outer Cable Diameter: 13.9mm, With GN-YE protective conductor
-
0026184 | OLFLEX CLASSIC FD 810 5G6 | Various ApplicationsPower and control cable, Number of Conductors: 5, Conductor Cross section: 6.0mm², Outer Cable Diameter: 15.5mm, With GN-YE protective conductor
-
0026185 | OLFLEX CLASSIC FD 810 4 G 10 | Various ApplicationsPower and control cable, Number of Conductors: 4, Conductor Cross section: 10.0mm², Outer Cable Diameter: 17.6mm, With GN-YE protective conductor
