Various Applications
Power and Control cables for various applications
- Multi Core / Single Core
- Number of conductors: From 1 to 65
- Conductor Cross Sections from 0.5mm² to 300mm²
- Screened / Unscreened versions
- With / Without GN-YE protective conductor
- Product values are nominal values
-

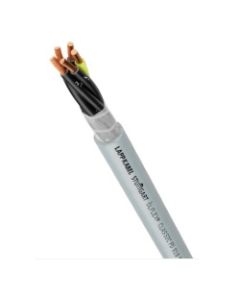

0026186 | OLFLEX CLASSIC FD 810 5G10 | Various ApplicationsPower and control cable, Number of Conductors: 5, Conductor Cross section: 10.0mm², Outer Cable Diameter: 19.6mm, With GN-YE protective conductor
-
0026187 | OLFLEX CLASSIC FD 810 4 G 16 | Various ApplicationsPower and control cable, Number of Conductors: 4, Conductor Cross section: 16.0mm², Outer Cable Diameter: 21.0mm, With GN-YE protective conductor
-
0026188 | OLFLEX CLASSIC FD 810 5G16 | Various ApplicationsPower and control cable, Number of Conductors: 5, Conductor Cross section: 16.0mm², Outer Cable Diameter: 23.6mm, With GN-YE protective conductor
-
0026200 | OLFLEX CLASSIC FD 810 CY 2X0,5 | Various ApplicationsScreened power and control cable, Number of Conductors: 2, Conductor Cross section: 0.5mm², Outer Diameter: 6.9mm, Without GN-YE protective conductor
-
0026201 | OLFLEX CLASSIC FD 810 CY 3G0,5 | Various ApplicationsScreened power and control cable, Number of Conductors: 3, Conductor Cross section: 0.5mm², Cable Outer Diameter: 7.3mm, With GN-YE protective conductor
-
0026202 | OLFLEX CLASSIC FD 810 CY 4 G 0,5 | Various ApplicationsScreened power and control cable, Number of Conductors: 4, Conductor Cross section: 0.5mm², Cable Outer Diameter: 7.9mm, With GN-YE protective conductor
-
0026203 | OLFLEX CLASSIC FD 810 CY 5G0,5 | Various ApplicationsScreened power and control cable, Number of Conductors: 5, Conductor Cross section: 0.5mm², Cable Outer Diameter: 8.4mm, With GN-YE protective conductor
-
0026204 | OLFLEX CLASSIC FD 810 CY 7G0,5 | Various ApplicationsScreened power and control cable, Number of Conductors: 7, Conductor Cross section: 0.5mm², Cable Outer Diameter: 9.8mm, With GN-YE protective conductor
-
0026205 | OLFLEX CLASSIC FD 810 CY 12G0,5 | Various ApplicationsScreened power and control cable, Number of Conductors: 12, Conductor Cross section: 0.5mm², Cable Outer Diameter: 11.3mm, With GN-YE protective conductor
-
0026206 | OLFLEX CLASSIC FD 810 CY 18G0,5 | Various ApplicationsScreened power and control cable, Number of Conductors: 18, Conductor Cross section: 0.5mm², Cable Outer Diameter: 13.4mm, With GN-YE protective conductor
-
0026207 | OLFLEX CLASSIC FD 810 CY 25G0,5 | Various ApplicationsScreened power and control cable, Number of Conductors: 25, Conductor Cross section: 0.75mm², Cable Outer Diameter: 15.9mm, With GN-YE protective conductor
-

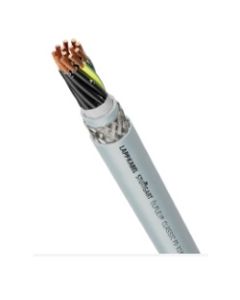

0026208 | OLFLEX CLASSIC FD 810 CY 30G0,5 | Various ApplicationsScreened power and control cable, Number of Conductors: 30, Conductor Cross section: 0.75mm², Cable Outer Diameter: 16.5mm, With GN-YE protective conductor
