Split Cable Entry Frames for Cables with Connectors
The patented cable entry system enables the user to enter, seal and provide strain relief for cables with and without connectors.
The key feature of icotek’s patented system is the split frame and slit grommets which provide quick, convenient and cost eff ective routing of pre-terminated and multi-conductor cables, hoses or conduits.
The split frame and slit grommets alleviate the need to cut and re-wire pre-terminated cables
-

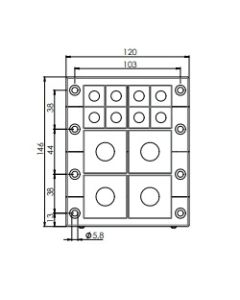

42148 | KEL 16/12 -2MT black | icotek Cable Entry FrameKEL 16-2 MT Cable Entry Frame, With 2 additional middle frames, Number of Grommets: 8 Small + 4 Large, Cut-Out Dimension: 86 x 126mm
-
42148.200 | KEL 16/12 -2MT black V2A | icotek Cable Entry Frame
KEL 16-2 MT Cable Entry Frame, With 2 additional middle frames ,Number of Grommets: 8 Small + 4 Large, Cut-Out Dimension: 126 x 86mm
-

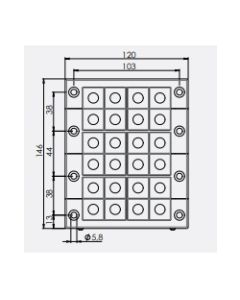

42149 | KEL 16/24 -2MT black | icotek Cable Entry FrameKEL 16-2 MT Cable Entry Frame, With 2 additional middle frames, Number of Grommets: 24 Small, Cut-Out Dimension: 86 x 126mm
-
42149.200 | KEL 16/24 -2MT black V2A | Cable Entry Frame
KEL 16-2 MT Cable Entry Frame, With 2 additional middle frames ,Number of Grommets: 24 Small, Cut-Out Dimension: 86 x 126mm
-

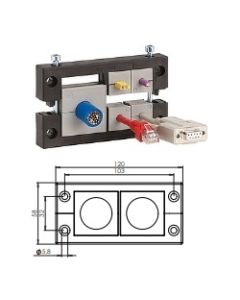

42162 | KEL 16/2 black | icotek Cable Entry FrameCentrally Split Cable Entry System, For Routing Cables with Connectors ,Number of Grommets 2 KT Large, Flat Rubber Gasket included, max 2 cables
-
42162.200 | KEL 16/2 black V2A | icotek icotek Cable Entry Frame
Centrally Split Cable Entry System, For Routing Cables with Connectors ,Number of Grommets 2 KT Large, Flat Rubber Gasket included, max 2 cables
-

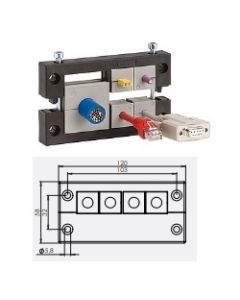

42164 | KEL 16/4 black | icotek icotek Cable Entry FrameCentrally Split Cable Entry System, For Routing Cables with Connectors ,Number of Grommets: 4 Small, Flat Rubber Gasket included, max 16 cables
-
42164.200 | KEL 16/4 black V2A | icotek Cable Entry Frame
Centrally Split Cable Entry System, For Routing Cables with Connectors ,Number of Grommets: 4 Small, Flat Rubber Gasket included, max 16 cables
-

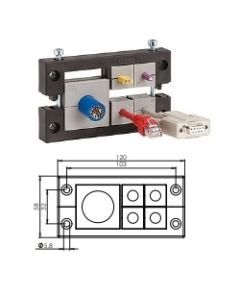

42165 | KEL 16/5 black | icotek Cable Entry FrameCentrally Split Cable Entry System, For Routing Cables with Connectors ,Number of Grommets: 4 KT Small + 1 KT Large, Flat Rubber Gasket included, max 17 cables
-
42165.200 | KEL 16/5 black V2A | icotek Cable Entry Frame
Centrally Split Cable Entry System, For Routing Cables with Connectors ,Number of Grommets: 4 Small + 1 Large, Flat Rubber Gasket included, max 17 cables
-

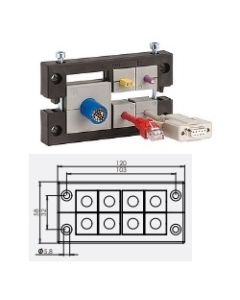

42168 | KEL 16/8 black | icotek Cable Entry FrameCentrally Split Cable Entry System, For Routing Cables with Connectors ,Number of Grommets: 8 small, Flat Rubber Gasket included, max 32 cables
-
42168.200 | KEL 16/8 black V2A | icotek Cable Entry Frame
Centrally Split Cable Entry System, For Routing Cables with Connectors ,Number of Grommets: 8 KT small, Flat Rubber Gasket included, max 30 cables
