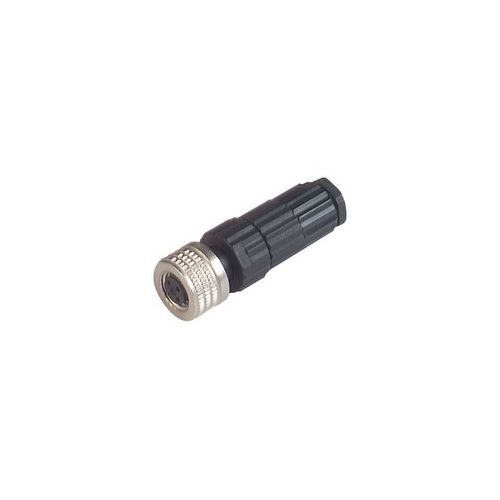

ELKA 3008 V | 933366100 | Connector
£9.23
Part Number 933366100 (9 in stock)
3 Pole Cable Socket, Rated voltage: AC/DC 60 V, Rated current: 3 A, Suitable cables, diameter 4 mm to 5 mm / 0.14 mm2 to 0.34 mm2
| Complete Electronics Part No. | 933366100 |
|---|---|
| Manufacturers Part No. | 933366100 |
| Type: | Cable Socket |
| Socket / PIN | Socket |
| Male/Female: | Female |
| Cable Entry: | Straight |
| Number of poles | 3 |
| Rated Current: | 3 A (2 A at 0.14 mm2 ) |
| Voltage: | AC/DC 60 V |
| IP Rating: | IP67 |
Description
ELKA 3008 V
Straight cable socket, unassembled
-
Strain relief by means of clamping cage
-
Female, - 3 pole
- Cable gland: M 9.5 x 1
- Suitable cables: diameter 4 mm to 5 mm / 0.14 mm2 to 0.34 mm2
- Rated current: 3 A (2 A at 0.14 mm2)
- Rated voltage: AC/DC 60 V
