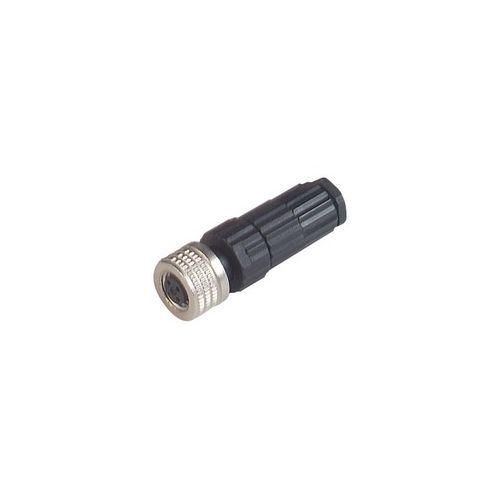

ELKA 4008 V | 933367100 | Connector
4 Pole Cable Socket, Rated voltage: AC/DC 30 V, Rated current: 3A
| Complete Electronics Part No. | 933 367-100 |
|---|---|
| Manufacturers Part No. | 933367100 |
| Type: | Cable Socket |
| Termination: | Pin |
| Male/Female: | Female |
| Number of poles | 4 |
| Rated Current: | 3 A (2 A at 0.14 mm2 ) |
| Voltage: | AC/DC 30 V |
| IP Rating: | IP67 |
Description
ELKA 4008 V
4 Pole Cable Socket
- Straight cable socket
- Unassembled
- Strain relief by means of clamping cage
- Female, 4 pole
- Cable gland: M 9.5 x 1
- Suitable cables diameter 4 mm to 5 mm / 0.14 mm2 to 0.34 mm2
- Rated current: 3A(2 A at 0.14 mm2)
- Rated voltage: AC/DC 30 V
