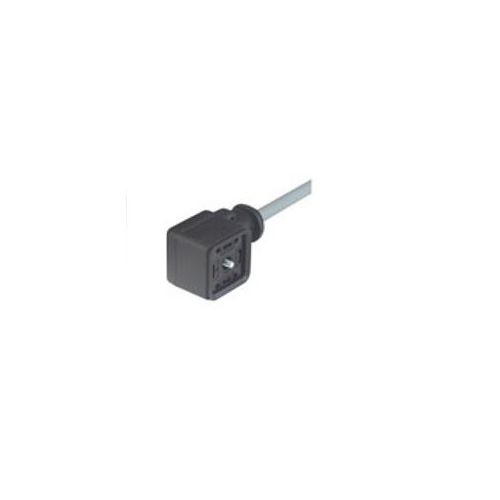

GAN-DAEE7A-AH0500C1-XC607-AC | 934562001 | Cordset
DIN 43650 - 3 Pole + Earth cable socket with integrally moulded lead (5m), gasket (captive) and central screw M3, Form A
| Complete Electronics Part No. | 934562001 |
|---|---|
| Manufacturers Part No. | 934 562-001 |
| Type: | Moulded with lead |
| Voltage: | AC/DC 250V |
| Number of poles | 3+PE |
| Valve Connector Form | A |
| Cable Jacket: | PVC |
| IP Rating: | IP65 / 67 |
Description
GAN-DAEE7A-AH0500C1-XC607-AC
NO LONGER AVAILABLE, REPLACEMENT PART GAN31LU-A0U-6100500 - 934 889-076
Cable socket with integrally moulded lead
- Gasket (captive) and central screw M3
- Cable length 5m
- Number of contacts 3 + PE
- Cable material PVC
- Cable color grey
- Cable diameter 6.2 mm
- Conductor size 0.75 mm2
- Cable specification LiYY 4G x 0.75 mm
- Standard DIN EN 175 301-803-A
- Color of Housing black
- Construction type A
