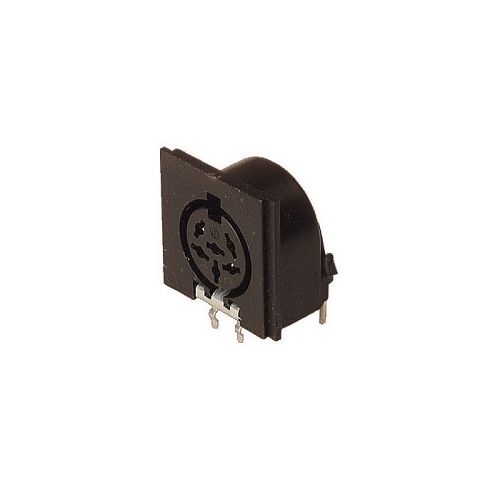

MAB 6 H | 930778200 | 6 Pin DIN Socket
6 Pin DIN Female Panel Mounted Socket for PCBs
| Complete Electronics Part No. | 930778200 |
|---|---|
| Manufacturers Part No. | 930 778-200 |
| Type: | DIN Socket |
| Number of poles | 6 |
| Shielding: | Not Shielded |
| Termination: | Solder |
| Mounting: | Panel Mount |
| PCB Connector Mounting | PCB Right Angled |
| Socket / PIN | Socket |
| Pole Arrangement DIN | DIN 45322 |
| Rated Voltage: | 34V |
| Rated Current: | 4A |
| IP Rating: | IP30 |
Description
MAB 6 H
Panel-mounted socket for PCBs
- Not- shielded
- Plug-in direction parallel to the PCB,
- Recommended board thickness 1.5 mm; additional fixing with screws (not supplied).
- Solder terminal.
- Female, 6 pole.
- Rated voltage: AC/DC 34 V,
- Rated current: 4A.
