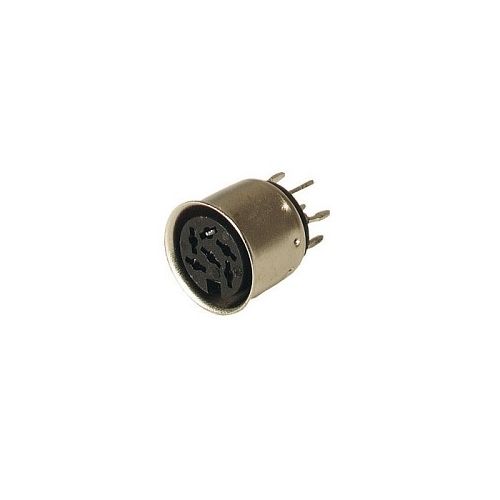

MAB 6 V | 930812200 | 6 Pin DIN Socket
6 Pin DIN Female Panel Mounted Socket for PCBs ***Discontinued***
| Complete Electronics Part No. | 930812200 |
|---|---|
| Manufacturers Part No. | 930 812-200 |
| Type: | DIN Socket |
| Number of poles | 6 |
| Termination: | PCB Mount |
| Mounting: | Panel Mount |
| PCB Connector Mounting | PCB Straight |
| Socket / PIN | Socket |
| Pole Arrangement DIN | DIN 45322 |
| Rated Voltage: | 34V |
| Rated Current: | 4A |
| IP Rating: | IP30 |
Description
MAB 6 V
Panel-mounted socket for PCBs
- Plug-in direction parallel to the PCB.
- Solder terminal.
- Female
- 6 pole.
- Rated voltage: AC/DC 34 V,
- Rated current: 4 A
***This product is being discontinued***
Last Order Date June 30th 2022
