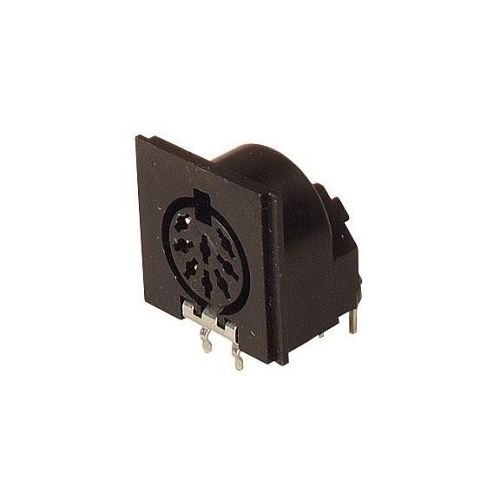

MAB 8 SH | 931399500 | 8 Pin DIN Socket
8 Pin DIN Female Panel Mounted Socket for PCBs
| Complete Electronics Part No. | 931399500 |
|---|---|
| Manufacturers Part No. | 931 399-500 |
| Type: | DIN Socket |
| Number of poles | 8 |
| Shielding: | Not Shielded |
| Termination: | Solder |
| Mounting: | Panel Mount |
| PCB Connector Mounting | PCB Right Angled |
| Socket / PIN | Socket |
| Pole Arrangement DIN | DIN 41524 |
| Rated Voltage: | 34V |
| Rated Current: | 4A |
| IP Rating: | IP30 |
Description
MAB 8 SH
Panel-mounted DIN socket for PCBs; Un-shielded
***This product is being discontinued***
Last Order Date: June 30th 2024
- Plug-in direction parallel to the PCB
- Recommended board thickness 1.5 mm; additional fixing with screws (not supplied).
- Solder joint.
- Female, 8 pole.
- Rated voltage: AC/DC 34 V.
- Rated current: 4 A.
