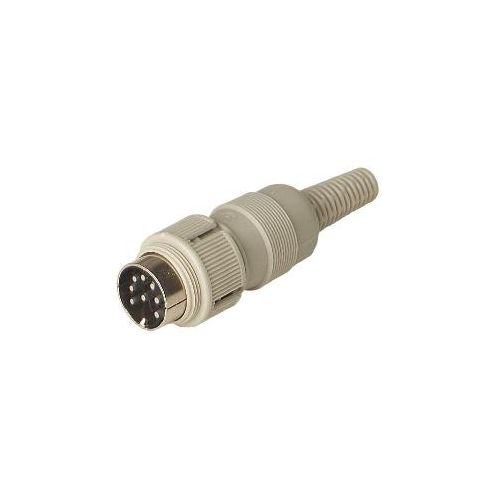

MAS 8100 S UM Grey | 931240117 | 8 Pin DIN Plug
8 Pin DIN Straight Plug
| Complete Electronics Part No. | 931 240-117 |
|---|---|
| Manufacturers Part No. | 931240117 |
| Type: | DIN Plug |
| Number of poles | 8 |
| Termination: | Solder |
| Mounting: | Cable Mount with Locking Ring |
| Socket / PIN | PIN |
| Pole Arrangement DIN | DIN 41524 (pins 1-5) |
| Cable Entry: | Straight |
| Rated Voltage: | 34V |
| Rated Current: | 4A |
| IP Rating: | IP30 |
Description
MAS 8100 S UM Grey
Plug with locking ring
***This product is being discontinued***
Last Order Date: June 30th 2024
- Solder joint.
- Male
- 8 pole.
- Cable diameter: 5.5 mm,
- Rated voltage AC/DC 34 V
- Rated current 4 A.
