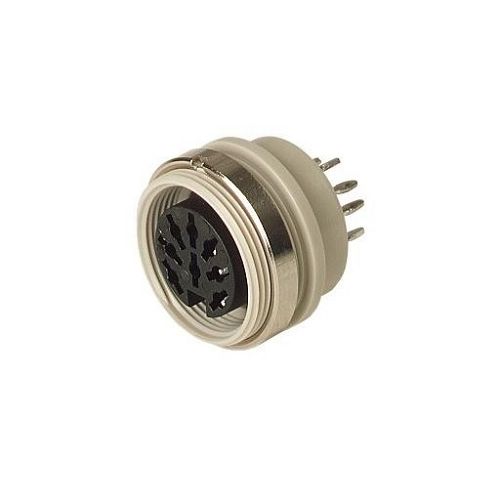

MAB 8500 SV | 933141517 | 8 Pin DIN Socket
8 Pin DIN Female Panel Mounted Socket with locking screw
| Complete Electronics Part No. | 933141517 |
|---|---|
| Manufacturers Part No. | 933 141-517 |
| Type: | DIN Socket |
| Number of poles | 8 |
| Shielding: | Not Shielded |
| Termination: | Solder |
| Mounting: | Panel Mount with Locking Ring |
| Socket / PIN | Socket |
| Pole Arrangement DIN | DIN 41524 (pins 1-5) |
| Rated Voltage: | 34V |
| Rated Current: | 4A |
| IP Rating: | IP30 |
Description
MAB 8500 SV
Panel-mounted socket with locking screw
***This product is being discontinued***
Last Order Date: June 30th 2024
- For installation in rear panels
- Max panel thickness 4 mm
- Solder joint
- Un-shielded
- Female
- 8 pole
- Rated voltage: AC/DC 34 V
- Rated current: 4 A
