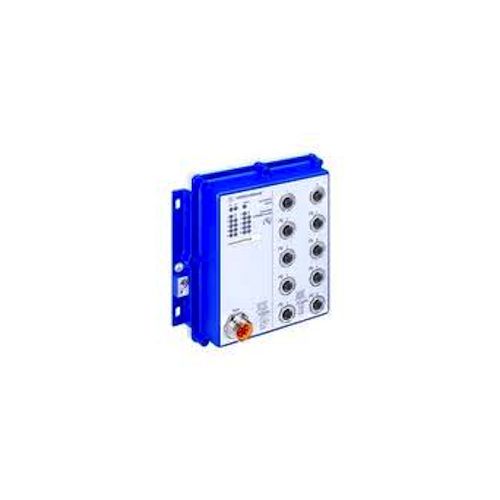

OS24-081000T5T5TFFUHB | 942025003 | Industrial Ethernet

Unmanaged switch 10 Ports of which 8 are PoE, 10/100 Base  ***Discontinued***

More Information
Complete Electronics Part No. 942025003
Manufacturers Part No. 942 025-003
Ethernet Product Type: Unmanaged Switch
Total 10/100 Base (M12 D Coding): 10
Number Of PoE Ports: 8
Total Ethernet Ports: 10
Operating Voltage: DC 24V/48V
Mounting: Wall
IP Rating: IP54
Description

OS24-081000T5T5TFFUHB

Unmanaged switch in accordance with IEEE 802.3,

     ***Product Discontinued***

Suggested Alternative: 942151001

  • Store-and-forward-switching,
  • Fast-Ethernet (10/100 Mbit/s) ports,
  • Power sourcing equipment in accordance with IEEE 802.3at (inline power) total PoE power max. 62W
  • 8 x 10/100 Base-TX PoE (Phantom Power) and 2 x 10/100 Base-TX, M12 D-coded 4-pole, TP-cable, autocrossing, autonegotiation, autopolarity

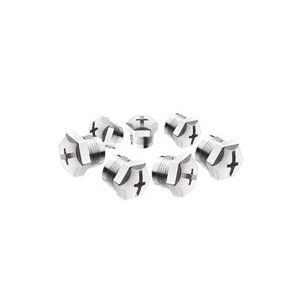

  • Accessories to order separately: 7/8″ 5-pole,female connector (942 086-005); M12 conector, “D”-coded (934 445-001); 2 m cordset with M12-connector, “D”-coded (934 578-001); 5 m cordset with M12-connectors, “D”-coded (934 578-002); 10 m cordset with M12-connectors, “D”-coded (934 578-003); Bulkhead M12 “D”-coded to RJ45 (934 498-001), OCTOPUS dust cover set (25 pieces) (942 057-001)
