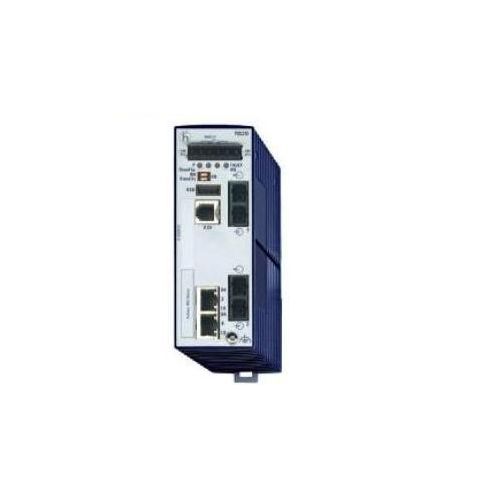

RS20-0400S2S2SDAEHHXX.X. | 943434013 | Industrial Ethernet
Managed 4 port Fast-Ethernet-Switch, 2.x uplink: 100BASE-FX, SM-SC, 2 x standard 10/100 BASE TX, RJ45
| Complete Electronics Part No. | 943434013 |
|---|---|
| Manufacturers Part No. | 943 434-013 |
| Ethernet Product Type: | Managed Switch |
| Total 10/100 (RJ45) Ports: | 2 |
| Total 100 Base Ports: | 2 |
| Total Ethernet Ports: | 4 |
| FX (Optical) Connector Type: | SC |
| FX (Optical) Cable Type: | Single Mode (SM) |
| Operating Voltage: | 12/24/48 V DC & 24V AC |
| Mounting: | DIN Rail |
| IP Rating: | IP20 |
Description
RS20-0400S2S2SDAEHH08.0.
4 port Fast-Ethernet-Switch
- Managed
- Software Layer 2 Enhanced
- For DIN rail
- Store-and-forward-switching
- Fanless design
- 1. uplink: 100BASE-FX, SM-SC
- 2. uplink: 100BASE-FX, SM-SC
- 2 x standard 10/100 BASE TX, RJ45
- Operating voltage 12/24/48 V DC (9,6-60) V and 24 V AC (18-30) V (redundant)
- Operating temperature 0 ºC ... 60 ºC
- Dimensions (W x H x D) 47 mm x 131 mm x 111 mm
- Mounting DIN Rail
- Weight 400 g
- Protection class IP20
***Product Discontinuation Notice***
Last Order Date: Dec 31st 2023
Last Delivery Date: June 30th 2024
Last Service Date: June 30th 2029
