Split Cable Entry Frames for Cables with Connectors
The patented cable entry system enables the user to enter, seal and provide strain relief for cables with and without connectors.
The key feature of icotek’s patented system is the split frame and slit grommets which provide quick, convenient and cost eff ective routing of pre-terminated and multi-conductor cables, hoses or conduits.
The split frame and slit grommets alleviate the need to cut and re-wire pre-terminated cables
-
icotek 41430 | KTMB-S grey | GrommetGrommets for KEL 183, Clamping Range: 64 - 75mm, Material: Elastomer, Flame Class: UL94-V0, self-extinguishing -
icotek 42320 | KEL- FG-A10 black | Entry FramesCable Entry Frames, At an angle of 90deg; to the cabinet / enclosure, Number of grommets: 10 x small, Length: 147.3mm, Width 80mm
-
icotek 42320.200 | KEL-FG-A10 black V2A | Entry Frames
Cable Entry Frames, At an angle of 90deg; to the cabinet / enclosure, Number of grommets: 10 x small, Length: 147.3mm, Width 80mm
-

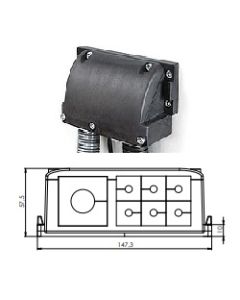

icotek 42322 | KEL- FG-A7 black | Entry FramesCable Entry Frames, At an angle of 90deg; to the cabinet / enclosure, Number of grommets: 6x Small + 1 Large, Length: 147.3mm, Width 80mm
-
icotek 42322.200 | KEL-FG A7 black V2A | Entry Frames
Cable Entry Frames, At an angle of 90deg; to the cabinet / enclosure, Number of grommets: 6x Small + 1 Large, Length: 147mm, Width 80mm
-

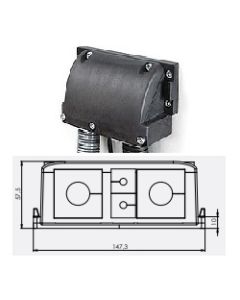

icotek 42324 | KEL- FG-A4 black | Entry FramesCable Entry Frames, At an angle of 90deg; to the cabinet / enclosure, Number of grommets: 2 x Small + 2 x Large, Length: 147mm, Width 80mm
-
icotek 42324.200 | KEL-FG-A4 black V2A | Entry Frames
Cable Entry Frames, At an angle of 90deg; to the cabinet / enclosure, Number of grommets: 2 x Small + 2 x Large, Length: 147mm, Width 80mm
-

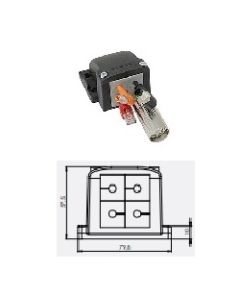

icotek 42330 | KEL- FG-B4 black | Entry FramesCable Entry Frames, At an angle of 90deg; to the cabinet / enclosure, Number of grommets: 4 x Small, Length: 79.8mm, Width 80mm, Height 57.5mm
-
icotek 42330.200 | KEL- FG-B4 black V2A | Entry Frames
Cable Entry Frames, At an angle of 90deg; to the cabinet / enclosure, Number of grommets: 4 x Small, Length: 79.8mm, Width 80mm, Height 57.5mm
-

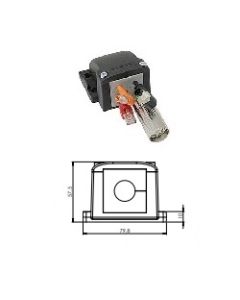

icotek 42332 | KEL- FG-B1 black | Entry FramesCable Entry Frames, At an angle of 90deg; to the cabinet / enclosure, Number of grommets: 1 x Large, Length: 79.8mm, Width 80mm, Height 57.5mm
-
icotek 42332.200 | KEL-FG-B1 black V2A | Entry Frames
Cable Entry Frames, At an angle of 90deg; to the cabinet / enclosure, Number of grommets: 1 x Large, Length: 79.8mm, Width 80mm, Height 57.5mm
-

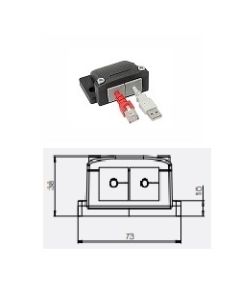

icotek 42333 | KEL-FG-E2 black | Entry FramesCable Entry Frames, At an angle of 90deg; to the cabinet / enclosure, Number of grommets: 2 x Small, Length: 73mm, Width 53mm, Height 38mm
