Split Cable Entry Frames for Cables with Connectors
The patented cable entry system enables the user to enter, seal and provide strain relief for cables with and without connectors.
The key feature of icotek’s patented system is the split frame and slit grommets which provide quick, convenient and cost eff ective routing of pre-terminated and multi-conductor cables, hoses or conduits.
The split frame and slit grommets alleviate the need to cut and re-wire pre-terminated cables
-

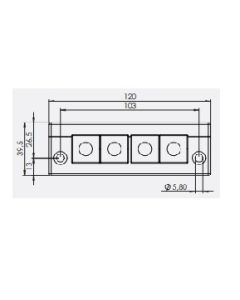

42259 | KEL-E4 black | icotek Cable Entry FrameSplit Cable Entry System, For Routing Cables with Connectors, Grommets: 4 KT Small, Inc flat Rubber Gasket, Length 120mm, Width 39mm, Height 17mm
-
42259.200 | KEL-E4 black V2A | icotek Cable Entry Frame
Split Cable Entry System, For Routing Cables with Connectors, Grommets: 4 KT Small, Inc flat Rubber Gasket, Length 120mm, Width 39mm, Height 17mm
-
42350 | KEL-JUMBO 2 black | Entry FrameCable Entry Frame, Screw type mounting, Grommets: 1 x KTF, Frame Dimensions, Length 200mm, Width 116mm, Height: 35mm
-
42350.200 | KEL-JUMBO 2 black V2A | Entry Frame
Cable Entry Frame, Screw type mounting, Grommets: 2 x KTF, Frame Dimensions, Length 200mm, Width 116mm, Height: 35mm
-
42360 | KEL-JUMBO 1 black | Entry Frame
Cable Entry Frame, Screw type mounting, Grommets: 1 x KTF, Frame Dimensions, Length 110mm, Width 116mm, Height: 35mm
-
42360.200 | KEL-JUMBO 1 black V2A | Entry Frame
Cable Entry Frame, Screw type mounting, Grommets: 1 x KTF, Frame Dimensions, Length 110mm, Width 116mm, Height: 35mm
-

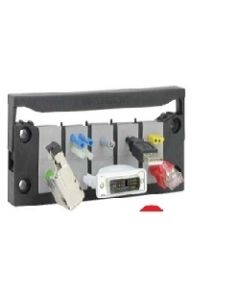

42410 | KEL-Quick 24/10 black | icotek Cable Entry FrameKel QUICK Cable Entry Frame, Route and seal pre-terminated cables, Fast, Easy assembly without the use of tools, Number of Grommets: 10 x QT
-
42418 | KEL-Quick 16/8 black | icotek Cable Entry Frame
Kel QUICK Cable Entry Frame, Route and seal pre-terminated cables ,Fast, Easy Assembly without the use of tools, Number of Grommets: 10 x QT small
-
42420 | KEL-QUICK 10|6 Black | icotek Cable Entry Frame
Kel QUICK Cable Entry Frame, Route and seal pre-terminated cables, Easy Assembly without the use of tools, Number of Grommets: 6 x QT small
-
42434 | KEL-Quick B4 black | icotek Cable Entry Frame
Kel QUICK Cable Entry Frame, Route and seal pre-terminated cables, Easy Assembly without the use of tools, Number of Grommets: 4 x QT small
-

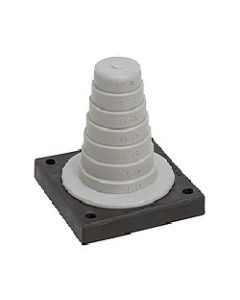

42614 | KEL-JUMBO flex 27-48 | Entry FrameLarge Flexible Cable Entry Grommet, For cables with a diameter range from 27 - 48 mm, Grommet Dimensions: 88 x 88mm, Frame Material: Polyamide (PA)
-
42616 | KEL-JUMBO flex 47-68 | Entry Frame
Large Flexible Cable Entry Grommet, For cables with a diameter range from 47 - 68 mm, Grommet Dimensions: 88 x 88mm, Frame Material: Polyamide (PA)
