DIN 1.0-2.3 Series
DIN 1.0/2.3 series of RF connectors
- DIN 1.0/2.3 series of RF connectors are available in 50 ohm and 75 ohm versions.
- These micro miniature connectors are designed to meet the standards IEC 61169-29, CECC 22230 & DIN 47297.
- Push-pull coupling.
- 1.0/2.3 are widely used for digital telecommunications
- Due to their small size, our true 75 ohm versions are increasingly being used in broadcast, as an alternative to BNC.
-
52-454-D36-1.6 | 52454D3616 | End Launch Bulkhead JackEnd Launch Bulkhead Jack for fitting to a 1.6mm thick PCB True 75 ohm 3Ghz Through-hole gold plated -
52-468-1-D36 | 524681D36 | R/A PCB Short Bulkhead JackRight Angle PCB Short Bulkhead Jack True 75 ohm -
-
52-468-5-D36 | 524685D36 | R/A PCB Bulkhead JackRight Angle PCB Bulkhead Jack True 75 ohm, 1.6 leg length -
52-468-6-D36 | 524686D36 | R/A Long PCB Bulkhead JackRight Angle PCB 14mm Long Bulkhead Jack True 75 ohm -
52-468-D36 | 52468D36 | R/A PCB Bulkhead JackRight Angle PCB Bulkhead Jack True 75 ohm with gold plated solder centre contact -
52-472-1-D36 | 524721D36 | R/A SMT PCB Bulkhead JackRight Angle SMT PCB Bulkhead Jack True 75 ohm with gold plated solder centre contact -
52-476-D36 | 52476D36 | PCB Straight Bulkhead Jack 3 LegPCB Straight Bulkhead Jack 3 Leg True 75 ohm with gold plated solder centre contact -

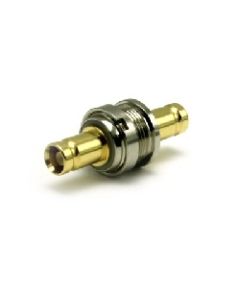

52-503-D66 | 52503D66 | Bulkhead Jack to Jack AdaptorInsulated Metal Thread Bulkhead Jack to Jack Adaptor
