DIN 1.0-2.3 Series
DIN 1.0/2.3 series of RF connectors
- DIN 1.0/2.3 series of RF connectors are available in 50 ohm and 75 ohm versions.
- These micro miniature connectors are designed to meet the standards IEC 61169-29, CECC 22230 & DIN 47297.
- Push-pull coupling.
- 1.0/2.3 are widely used for digital telecommunications
- Due to their small size, our true 75 ohm versions are increasingly being used in broadcast, as an alternative to BNC.
-
52-104-B6-AB | 52104B6AB | R/A Solder Crimp PlugRight Angle Solder Crimp Plug, 75 Ohm, with gold plated solder centre contact.and braid is crimped -
52-104-B6-EF | 52104B6EF | R/A Solder Crimp PlugRight Angle Solder Crimp Plug, 75 Ohm, with gold plated solder centre contact.and braid is crimped -
52-104-B6-FA | 52104B6FA | R/A Solder Crimp PlugRight Angle Solder Crimp Plug, 75 Ohm, with gold plated solder centre contact.and crimped braid -
52-104-B6-FE | 52104B6FE | R/A Solder Crimp PlugRight Angle Solder Crimp Plug, 75 Ohm, with gold plated solder centre contact.and crimped braid -
52-254-D6-AB | 52254D6AB | Rear Mount Bulkhead Crimp JackRear Mount Bulkhead Crimp/Crimp Jack 75 ohm -

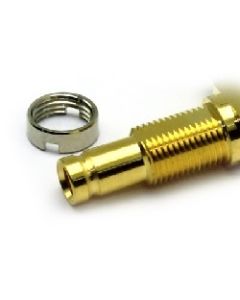

52-254-D6-BC | 52254D6BC | Rear Mount Bulkhead Crimp JackRear Mount Bulkhead Crimp/Crimp Jack 75 ohm -
-
-
-
52-450-D36 | 52450D36 | PCB Straight JackPCB Mount Straight Jack True 75 ohm 3Ghz Through-hole gold plated 4 leg solder body -
52-450-D36-25 | 52450D3625 | PCB Straight JackPCB Mount Straight Jack True 75 ohm 3Ghz Through-hole gold plated 4 leg solder body, 25mm board height -
52-454-D36 | 52454D36 | PCB Straight Bulkhead JackPCB Mount Straight Bulkhead Jack True 75 ohm 3Ghz Through-hole gold plated 4 leg solder body
