DIN 1.0-2.3 Series
DIN 1.0/2.3 series of RF connectors
- DIN 1.0/2.3 series of RF connectors are available in 50 ohm and 75 ohm versions.
- These micro miniature connectors are designed to meet the standards IEC 61169-29, CECC 22230 & DIN 47297.
- Push-pull coupling.
- 1.0/2.3 are widely used for digital telecommunications
- Due to their small size, our true 75 ohm versions are increasingly being used in broadcast, as an alternative to BNC.
-
52-005-D3-BF | 52005D3BF | Crimp Plug 75ohm 1GhzCrimp Plug True 75 Ohm 1Ghz, straight full crimp plug with gold plated centre and outer contact. -
52-005-D3-BF-BULK100 | 52005D3BFBULK100 | Crimp Plug 75ohm 1GhzCrimp Plug True 75 Ohm 1Ghz, straight full crimp plug with gold plated centre and outer contact. -
52-005-D3-FB | 52005D3FB | Crimp Plug 75ohm 3GhzCrimp Plug True 75 Ohm 3Ghz, straight full crimp plug with gold plated centre and outer contact. -
-

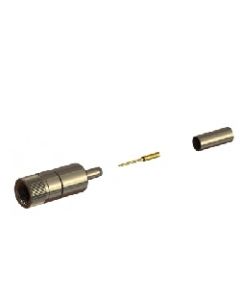

52-005A-B66-EF | 52005AB66EF | Screw Lock Crimp Plug 3GScrew Lock Crimp / Crimp Plug True 75 Ohm 3G -
-
-
-
52-054-D6-BD | 52054D6BD | Crimp Jack 75ohm 1GhzCrimp Plug True 75 Ohm 1Ghz, straight full crimp Jack with gold plated centre and outer contact. -

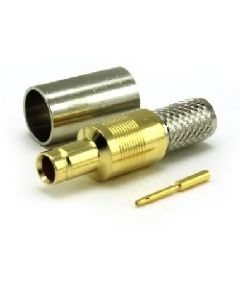

52-054-D6-FA | 52054D6FA | Crimp Jack 75ohmCrimp Plug True 75 Ohm, straight full crimp Jack with gold plated centre and outer contact. -
52-054-D6-FB | 52054D6FB | Crimp Jack 75ohmCrimp Plug True 75 Ohm, straight full crimp Jack with gold plated centre and outer contact. -
52-104-B3-BD | 52104B3BD | R/A Solder Crimp PlugRight Angle Solder Crimp Plug, 75 Ohm, with gold plated solder centre contact.and braid is crimped
