Phoenix Contact WLAN
Wireless Technologies
Different wireless technologies for special industrial requirements In industry
There is a vast range of applications for wireless technologies, from the transmission of a simple sensor value all the way to a powerful network with hundreds of devices.
This means that the requirements for wireless technology differ significantly.
This broad range of requirements is not satisfied entirely by one single wireless technology.
Phoenix Contact provides products for license-free and free-of-charge wireless technologies which can cover virtually all industrial areas of application
Wireless technologies in industrial applications must be as robust and reliable as a cable connection, even under harsh conditions.
With wireless communication, the data is transmitted with electromagnetic waves through free space that is not available exclusively.
The wireless connection is therefore subjected to interference, such as electromagnetic interference fields, which can adversely affect transmission.
In addition, reflections, fading, interference, and shadowing can occur.
Despite the impacts described, the wireless systems work without interference.
-

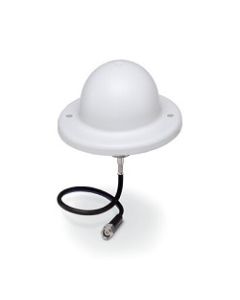

RAD-ISM-2400-ANT-VAN-3-0-RSMA | 2701358 | AntennaOmnidirectional antenna with protection against vandalism, 2.4 GHz, gain: 3 dBi, polarization: linear, degree of protection: IP55, RSMA (male) -

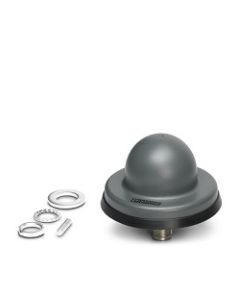

RAD-ISM-2459-ANT-FOOD-6-0-N | 2702898 | AntennaOmnidirectional antenna with protection against vandalism, 2.4 GHz / 5GHz, gain: 6 dBi / 8dBi, polarization: linear, degree of protection: IP68, N type (male) -

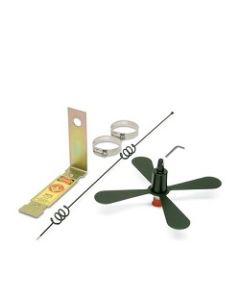

RAD-ISM-900-ANT-OMNI-5 | 2867199 | AntennaOmnidirectional antenna, 900 MHz, gain: 7 dBi, polarization: linear, opening angle: h/v 360°/30°, connection: N (female), ***No longer in product range***
-

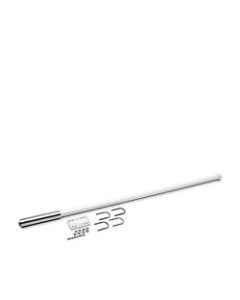

RAD-ISM-900-ANT-OMNI-FG-3-N | 2867791 | AntennaOmnidirectional antenna, 900 MHz, gain: 5 dBi, polarization: linear, IP65, connection: N (female), incl. mounting bracket and mast clips
***No longer in product range***
-
RAD-ISM-900-ANT-OMNI-FG-6-N | 2885579 | AntennaOmnidirectional antenna, 900 MHz, gain: 8 dBi, polarization: linear, IP65, connection: N (female), incl. mounting bracket and mast clips -

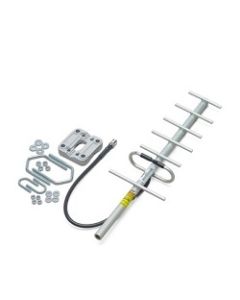

RAD-ISM-900-ANT-YAGI-10-N | 5606614 | AntennaDirectional antenna 868 MHz / 900 MHz, gain: 12 dBi, polarization: linear, opening angle: h/v 56°/46°, IP65, connection: N (female) -

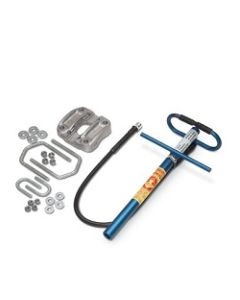

RAD-ISM-900-ANT-YAGI-3-N | 2867801 | AntennaDirectional antenna, 868 MHz / 900 MHz, gain: 5 dBi, polarization: linear, opening angle: h/v 168°/78°, Ingress protection: IP65, connection: N female -

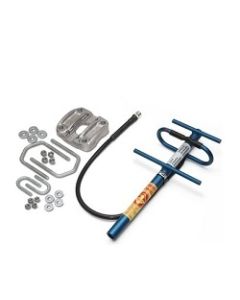

RAD-ISM-900-ANT-YAGI-6.5-N | 2867814 | AntennaDirectional antenna, 868 MHz / 900 MHz, gain: 8.5 dBi, polarization: linear, IP65, connection: N (female), incl. mounting bracket and mast clips -

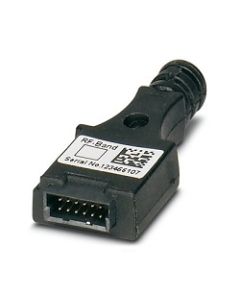

RAD-Memory | 2902828 | Configuration memoryRadioline - memory stick for saving custom configuration data -

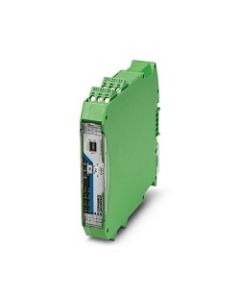

RAD-NAM4-IFS | 2316275 | I/O Extension moduleRadioline - I/O extension module, 4 NAMUR digital input module used in Radioline and PROFIBUS PA MUX I/O systems. -

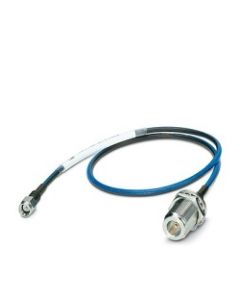

RAD-PIG-EF316-N-RSMA | 2701402 | Antenna CableAntenna cable for control cabinet feed-through, outside diameter: 3.2 mm, inner conductor: stranded, N (female) -> RSMA (male), cable length: 0.5 m -

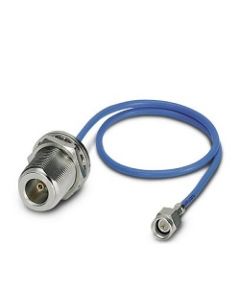

RAD-PIG-EF316-N-SMA | 2867694 | Antenna CableAntenna cable, outside diameter: 3.2 mm (0.126 in.), inner conductor: stranded, connection: SMA (male) -> N (female), cable length: 0.3 m (1 ft.)
