TNC Jacks
TNC connectors are a screw lock coupling version of the BNC connectors.
The screw coupling enables TNC to be used at frequencies up to 11GHz in harsh environment situations.
Widely used for antenna connections,
TNC have many applications in avionics, defence, communications and general industrial markets.
Reverse polarity and 75 ohm TNC are also available.
-
13-256-A0-AA | 13256A0AA | TNC Bulkhead Crimp JackTNC Rear Mount Bulkhead Straight Crimp / Crimp Jack ( 4 Part ), Suitable for use with RG178 and similar cables in group AA. -

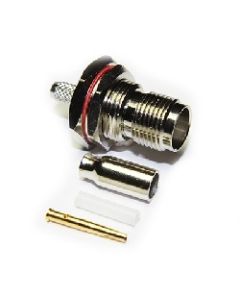

13-256-A0-AD | 13256A0AD | TNC Bulkhead Crimp JackTNC Rear Mount Bulkhead Straight Crimp / Crimp Jack ( 4 Part ), Suitable for use with RG316 and similar cables in group AD. -

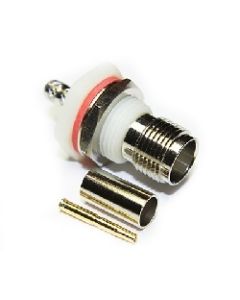

13-258-A3-AH | 13258A3AH | TNC Bulkhead Crimp JackTNC Insulated Rear Mount Bulkhead Straight Crimp / Crimp Jack Suitable for use with RG58 and similar cables in group AH. -

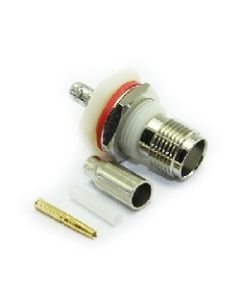

13-260-A5-AB | 13260A5AB | TNC Bulkhead Crimp JackTNC Insulated Rear Mount Bulkhead Straight Crimp / Crimp Jack (4 Part) Suitable for use with RG179 and similar cables in group AB. -
13-264-A0-AD | 13264A0AD | TNC Bulkhead Crimp JackTNC Rear Mount Bulkhead Straight Crimp / Crimp Jack ( Bullet Contact ) Suitable for use with RG174 and similar cables in group AD. -

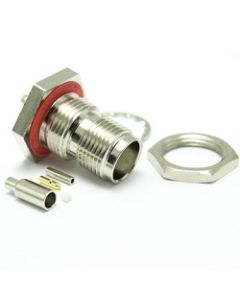

13-264-B3-AA | 13264B3AA | TNC Bulkhead Crimp JackTNC Rear Mount Bulkhead Straight Crimp / Crimp Jack ( Bullet Contact ) Suitable for use with RG178 and similar cables in group AA. -

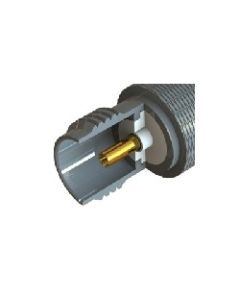

13-269-B3-AA | 13269B3AA | TNC Bulkhead Crimp JackTNC Front Mount Bulkhead Straight Crimp / Crimp Jack ( Bullet Contact ) Suitable for use with RG178 and similar cables in group AA. -

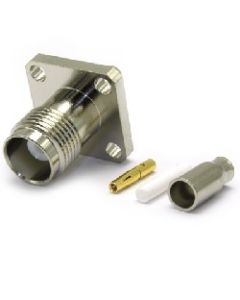

13-278-A3-AD | 13273A3AD | TNC 4 Hole Flange Crimp JackTNC 4 Hole Flange 4 Part Crimp / Crimp Jack 17.5mm square 4 hole flange with a hole centre of 12.7 mm, for use with RG316 and similar cables in group AD. -
13-283-B3-HA-17.5MM | TNC 4 Hole Sealed Flange Solder JackTNC 50 ohm 4 hole flange mount jack for direct solder to semi-rigid. Suitable for use with RG405 (0.085") semi-rigid and similar cables in group HA. -

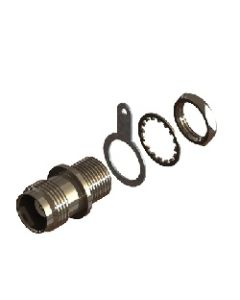

13-352-A3 | 13352A3 | TNC Bulkhead Solder JackTNC 50 ohm Straight Front Mount 3/8 x 32 UNEF bulkhead Jack. The solder spill centre contact is gold plated and the Solder Tag is Tin Plated. -

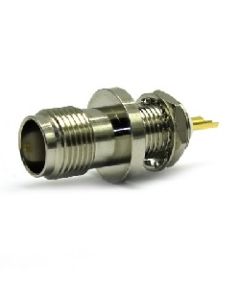

13-355-A3 | 13355A3 | TNC Bulkhead Solder JackTNC 50 ohm Straight Front Mount Sealed Bulkhead Jack. The Solder Spill Centre Contact is Gold Plated. Double flats on body With a Silicon O Ring . -

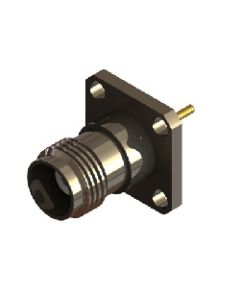

13-373-B3 | 13373B3 | TNC Bulkhead Solder JackTNC 50 ohm 4 Hole 17.5 mm Square O Ring Sealed Flange Jack Direct Solder 1.27mm Dia x 4.3mm Post Plated .Nickel Plated Body with a Gold Plated Centre Contact
