Micro BNC (HD BNC) 75 ohm
Micro BNC 75 ohm Connectors
- Designed for HD & UHD Broadcast, Telecom, HDcctv, Instrumentation and similar applications
- High performance in an high density package.
- The unique patented coupling nut allows the use of a special tool to disconnect the connectors when they are closely mounted.
- Tested to beyond 12GHz and exceeding the requirements of SMPTE ST 2082-1, these connectors are used in Full HD1080p (3G), HD-SDI and are fit for Ultra HD 4K (12G) applications.
- With a diameter of only 7.8 mm, mounting density is increased by 4 times when compared with a standard BNC.
-

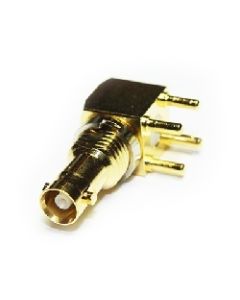

67-468-D66 | 67468D66 | Micro BNC R/A PCB Mount JackMicro BNC Right Angle PCB Mount Bulkhead Jack 12GHz True 75ohm With gold plated inner and outer contacts **Tested to 18GHz**
-

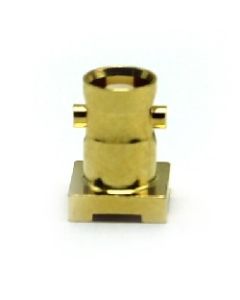

67-476-1-D66-8.3 | 674761D668.3 | Micro BNC PCB JackMicro BNC 75 ohm straight Surface Mount PCB jack giving a board height of 8.3mm, gold plated inner and outer contacts.**Tested to 18GHz** -

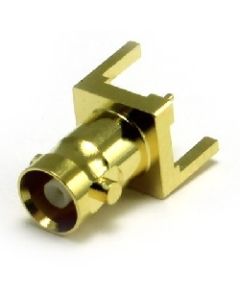

67-476-D66-12.25 | 67476D6612.25 | Micro BNC PCB JackMicro BNC 75 ohm straight PCB jack with 3 outer contact legs, gold plated inner and outer contacts. -

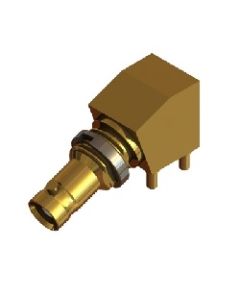

67-492-D66 | 67492D66 | Micro BNC PCB Jack R/AMicro BNC 75 ohm 98 deg PCB bulkhead jack. based on a Right Angle but 8 deg from the horizontal, gold plated inner and outer contacts. -

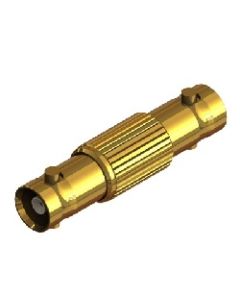

67-500-D126 | 67500D1266 | Micro BNC Jack-Jack AdapterMicro BNC 75 ohm Jack to Jack in line Adaptor. Designed for Full HD 1080p applications, gold plated inner and outer contacts. -

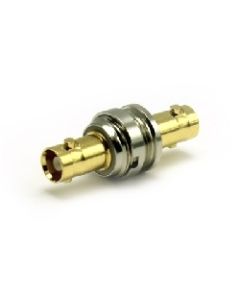

67-503-D126 | 67503D126 | Micro BNC Jack /Jack AdaptorMicro BNC 75 ohm Insulated with a metal thread Bulkhead Jack to Jack Adaptor, designed for Full HD 1080p applications -

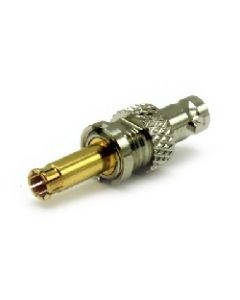

67-512-B66 | 67512B66 | Micro BNC Plug /Jack AdaptorMicro BNC 75 ohm Bulkhead Push-On (without the bayonet cap ) Plug to Jack Adaptor, Full HD 1080p applications and general use up to 12GHz. -

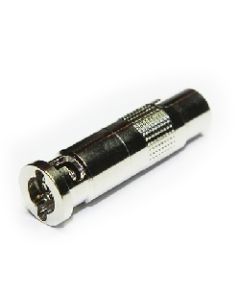

67-863-B36 | 67863B36 | Micro BNC Plug TerminationMicro BNC 75 ohm plug termination, return loss @6GHz of -23dB and @ 12Ghz of -26dB. With gold plated centre contact. -

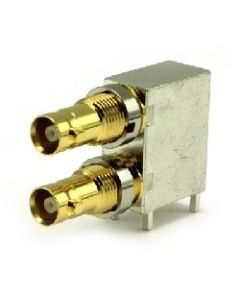

92-67-468-2-B126 | 92674682B126 | Micro BNC R/A 2 way JacksMicro BNC 75 Ohm 2 Way Right Angle PCB Mount Bulkhead Jacks with Screwed Nuts Gold Plated Interface Body and centre Contacts with a Tin Plated PCB Body -

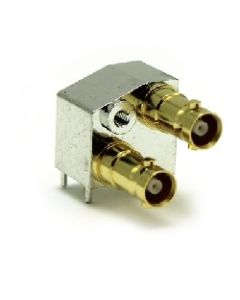

92-67-468-3 | 92674683 | Micro BNC R/A 2 way JacksMicro BNC 75 Ohm 2 Way Right Angle PCB Mount Bulkhead Jacks, Jacks held to the bulkhead with a countersunk screw, Gold Plated Interface Body -

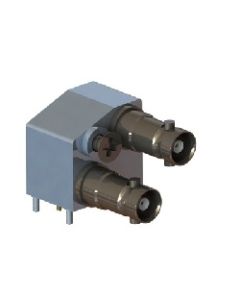

92-67-468-3-BSn126 | 92674683BSn126 | BNC R/A 2 way JacksMicro BNC 75 Ohm 2 Way Right Angle PCB Mount Bulkhead Jacks, Jacks held to the bulkhead with a countersunk screw, Gold Plated Interface Body
